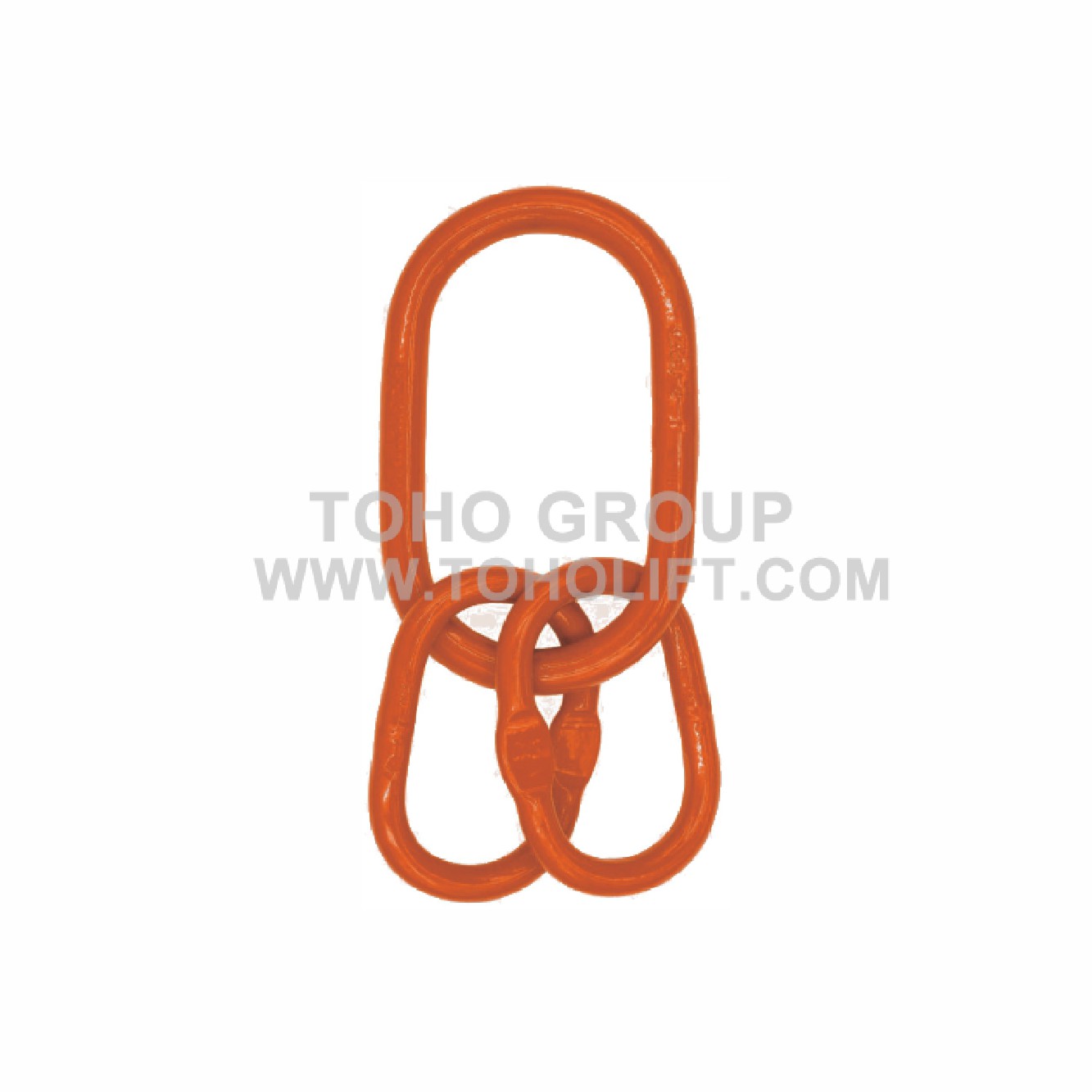

G80 Master Link Assembly (TH-134)

G80 Master Link Assembly (TH-134)
■ Powder coated, different color is available as per request.
■ Working load limit permanently shown on the body.
■ Max proof load is 2.5 times of the working load limited.
■ Min. Breaking strength is 4 times of the W.L.L.

Send Inquiry Chat Now

Description

Size	W.L.L (t)	Dimension (mm)						N.W. (kg/pc)
Size	W.L.L (t)	A	B	D	a	b	d	N.W. (kg/pc)
8-4 T	4	150	75	16	90	50	13	1.3
8-8.5 T	8.5	162	90	22	150	75	16	3.8
8-5.8 T	5.8	270	140	22	140	70	20	3.6
8-14 T	14	200	110	28	140	70	22	5.5
8-11.8 T	11.8	270	140	28	140	70	20	5.9
8-17.1 T	17.1	270	140	32	190	100	26	9.7
8-23 T	23	270	140	36	185	90	28	11.9
8-28.1 T	28.1	280	155	40	200	110	32	16.4
8-35 T	35	320	175	45	225	125	36	23.5
8-45 T	45	350	195	50	260	130	40	32.3
8-60 T	60	410	220	60	350	195	50	63.9
8-85 T	85	450	250	70	410	220	60	102.6
8-150 T	150	500	300	90	400	200	70	156
