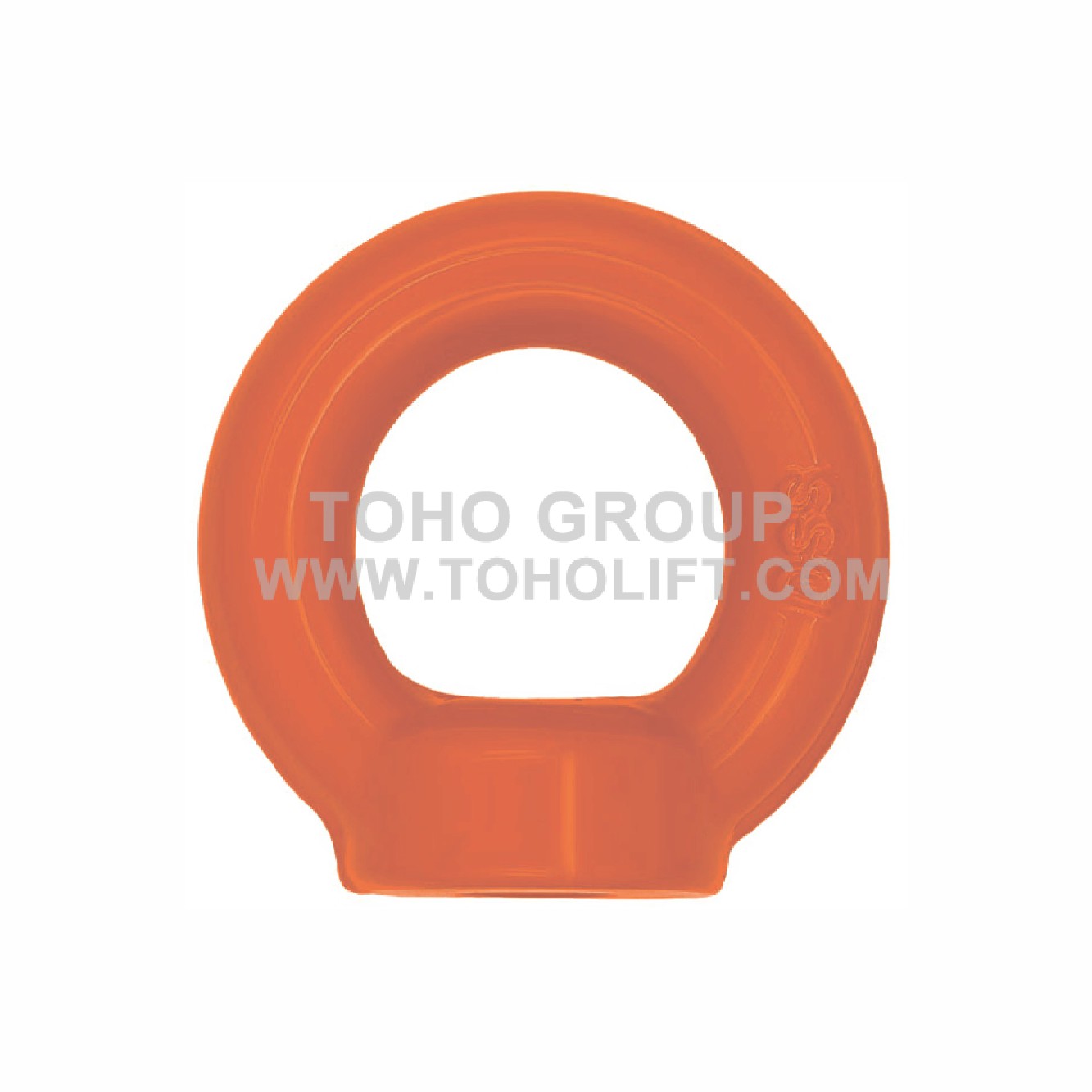

G80 Eye Nut (TH-55)
■ Powder coated, different color is available as per request.
■ Working load limit permanently shown on the body.
■ Max proof load is 2.5 times of the working load limited.
■ Min. Breaking strength is 4 times of the W.L.L.
|
Size |
W.L.L (t) |
Dimension (mm) |
N.W. (kg/pc) |
|||
|
|
0° |
90° |
D |
Φ |
L |
|
|
M6 |
0.4 |
0.15 |
36 |
20 |
36 |
0.049 |
|
M8 |
1 |
0.4 |
36 |
20 |
36 |
0.05 |
|
M10 |
1 |
0.4 |
45 |
25 |
45 |
0.09 |
|
M12 |
2 |
0.75 |
54 |
30 |
53 |
0.16 |
|
M16 |
4 |
1.5 |
63 |
35 |
62 |
0.24 |
|
M20 |
6 |
2.3 |
72 |
40 |
71 |
0.36 |
|
M24 |
8 |
3.2 |
90 |
50 |
90 |
0.72 |
|
M30 |
12 |
4.5 |
108 |
60 |
109 |
1.32 |
|
M36 |
16 |
7 |
126 |
70 |
128 |
2.08 |
|
M42 |
24 |
9 |
144 |
80 |
147 |
3.11 |
|
M48 |
32 |
12 |
166 |
90 |
168 |
5.02 |
|
