JCD VERTICAL LIFTING CLAMPS
JAPAN MODEL
Suitable for vertical lifting of steel plates and steel structures
Capacity: 0.8-20T
Made of high-quality low-carbon alloy steel
It is fitted with a locking device for both open and closed positions,
which ensures complete safety
High-frequency quenching of die-forged special alloy steels
enhance the strength and durability of the tooth plate
The working load is the capacity of one piece. It may be used
singly or pairs of clamp used together
Do not crash the lifted cargos during the lifting and transfer period

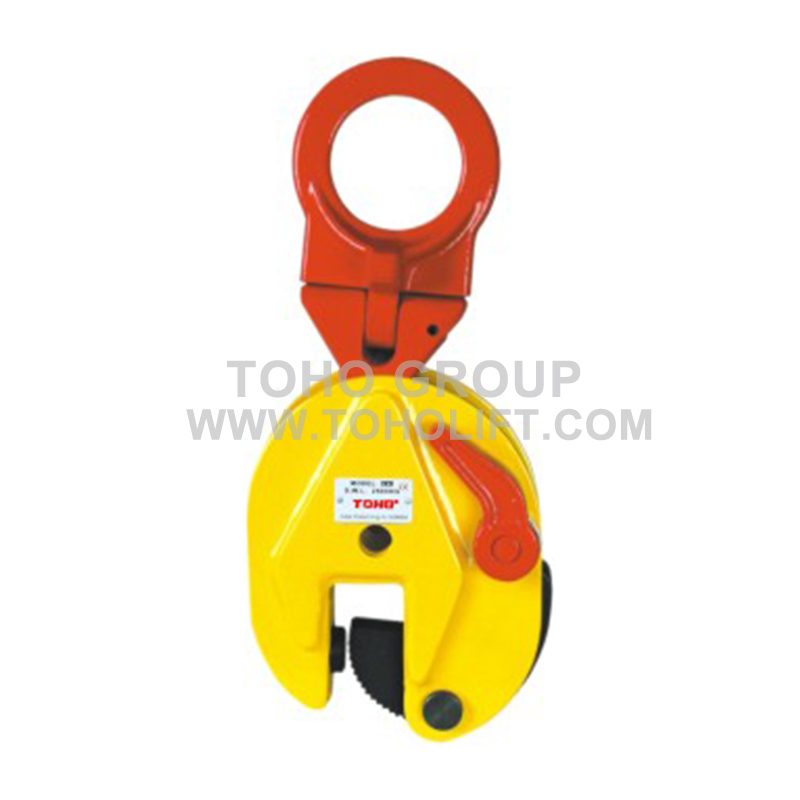

CDK VERTICAL LIFTING CLAMPS
Suitable for lifting and transfer of steel plates and steel structures
with all positions (horizontal, vertical and sidelong)
It is fitted with a locking device for both open and closed positions,
which ensures complete safety
It is fitted with a hoisting ring
Made of high-quality low-carbon alloy steel
It may be used singly or pairs of clamp used together
Do not crash the lifted cargos during the lifting and transfer period

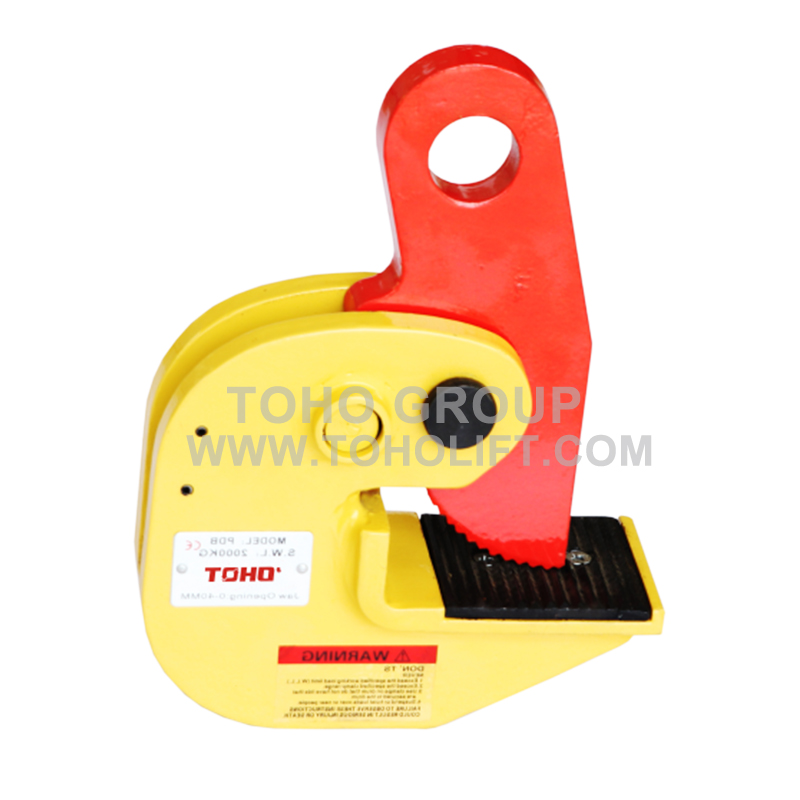

PPD HORIZONTAL LIFTING CLAMPS
Europe model
Suitable for lifting and horizontal transfer of steel plates and steel
structures
Capacity: 0.8-16T
Made of high-quality low-carbon alloy steel
The working load limit is the maximum load when the clamp are
used in pairs with a lift angle of 60°. In lifting operation should be
used in pairs or multiples
HORIZONTAL LIFTING CLAMPS
JPD
Suitable for horizontal lifting of "H", "I" "T" "L" shaped steel structures
It is a light-weight clamp which may be used single-handedly or
several clamps
The main body and parts are forged and heat treated to enhance
the strength and durability of the clamp
THP LIFTING CLAMPS
Europe model
Suitable for horizontal lifting and transfer of steel and concrete pipes
Capacity: 1.5-16T
Compact shape and relatively low weight with a high lifting capacity
The working load is the capacity of one pair. Pairs of clamp should be
used together
Do not crash the lifted cargos during the lifting and transfer period
The connecting shackle is available at extra cost
TK TURNTABLE SMALL TANK
Suitable for conveying and rotating of goods
Made of high-quality low-carbon alloy steel
Duration oiled metal wheels with polyurethane cover
Two pairs of clamp should be used together
Moving road should be smooth floor
PDK MULTI STEEL PLATE LIFTING CLAMPS
Suitable for lifting and transport of multi steel plates
Made of high-quality low-carbon alloy steel
The position of the tongue will be adjusted according to the thickness of the lifting steel
For horizontal lifting, it should be fitted with balance beam
QS DOUBLE STEEL PLATE LIFTING CLAMPS
Suitable for horizontal lifting of "H", "I" "T" "L" shaped steel structures
Made of high-quality low-carbon alloy steel
Upper roller design to avoid wire rope damage
It's easy for the narrow space with sharp triangle
One pair, pairs or group of clamp used together
PDQ SINGLE STEEL PLATE LIFTING CLAMPS
Suitable for lifting and transport single or multi steel plates
Made of high-quality low-carbon alloy steel
Pairs or group of clamp used together
For horizontal lifting, it should be fitted with balance beam.
TLG TCONCRETE PIPE LIFTING CLAMP
Suitable for vertical lifting transport of concrete pipes and culverts
One pair, pairs or group of clamp used together
Lifting gear for concrete pipe to diameter of 3000mm is available
TBCT TCONCERTE PIPE LIFTING CLAMP
Suitable for vertical lifting and transporting of concrete pipes and wells
TBC clamps must always be used in pairs or per three clamps
Higher capacities or other jaw opening upon request
