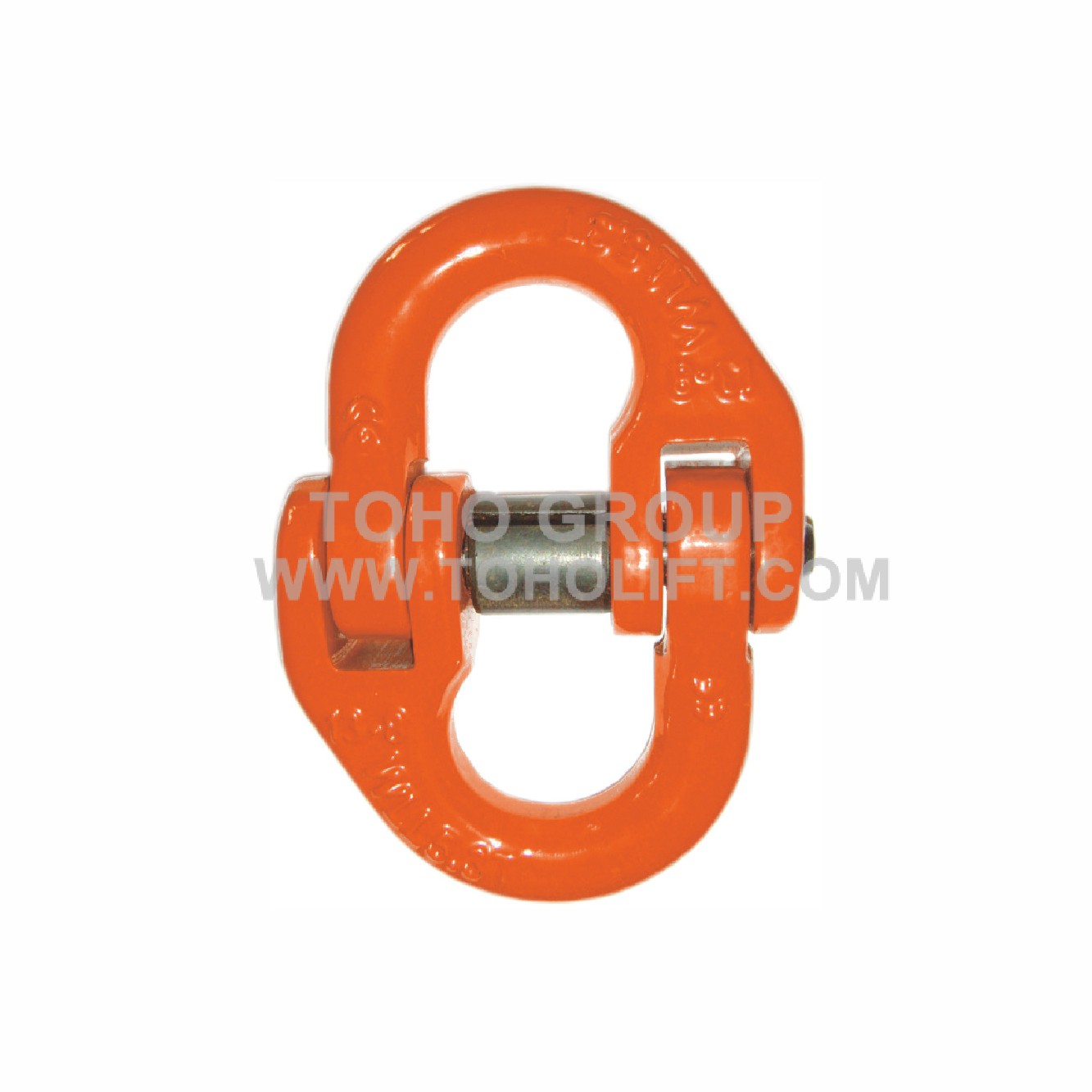

G80 European Type Connecting Link (TH-74)
■ Powder coated, different color is available as per request.
■ Working load limit permanently shown on the body.
■ Max proof load is 2.5 times of the working load limited.
■ Min. Breaking strength is 4 times of the W.L.L.
|
Size |
W.L.L (t) |
B.L (t) |
Dimension (mm) |
N.W.(kg/pc) |
|||
|
|
|
|
A |
L |
K |
H |
|
|
6-8 |
1.12 |
4.48 |
15 |
58 |
42 |
7.0 |
0.08 |
|
7-8 |
1.5 |
6 |
19 |
71.8 |
54.8 |
8.5 |
0.145 |
|
7/8-8 |
2.0 |
8.0 |
18 |
79.5 |
62.5 |
8.5 |
0.146 |
|
8-8 |
2.0 |
8.0 |
18 |
79.5 |
60.5 |
8.5 |
0.16 |
|
10-8 |
3.15 |
12.6 |
25 |
93 |
68 |
10.8 |
0.30 |
|
13-8 |
5.3 |
21.2 |
29 |
117 |
87 |
15 |
0.70 |
|
16-8 |
8 |
32 |
34.5 |
148 |
108.4 |
19.8 |
1.1 |
|
18-8 |
10 |
40 |
38 |
154 |
112 |
21 |
1.84 |
|
18/20-8 |
12.5 |
50 |
41 |
169.5 |
121.5 |
24 |
1.8 |
|
22-8 |
15 |
60 |
48 |
193.5 |
141.5 |
26 |
3.2 |
|
26-8 |
21.2 |
84.8 |
57.5 |
220 |
158 |
30 |
4.5 |
|
32-8 |
31.5 |
126 |
67 |
281 |
205 |
37 |
9 |
|
