G80 Master Link (TH-133)
■ Powder coated, different color is available as per request.
■ Working load limit permanently shown on the body.
■ Max proof load is 2.5 times of the working load limited.
■ Min. Breaking strength is 5 times of the W.L.L.
|
Size |
W.L.L (t) |
B.L (t) |

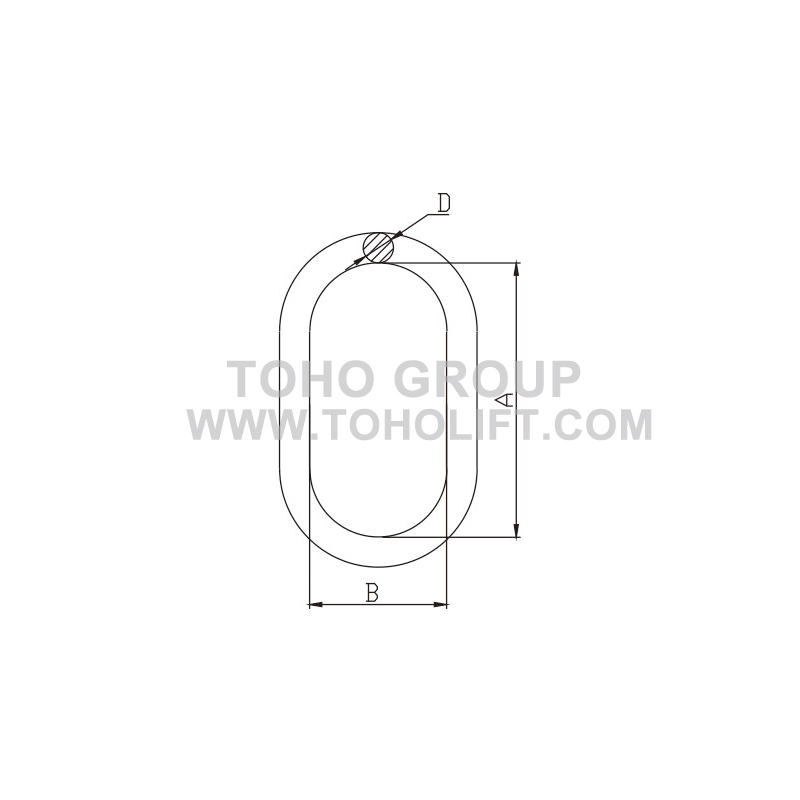

Dimension (mm) |
N.W. (kg/pc) |
||
|
A |
B |
D |
||||
|
8-4T |
4 |
16 |
150 |
75 |
16 |
0.7 |
|
8-8.5 T |
8.5 |
34 |
162 |
90 |
22 |
1.5 |
|
8-5.8 T |
5.8 |
23.2 |
270 |
140 |
22 |
2.3 |
|
8-14 T |
14 |
56 |
200 |
110 |
28 |
3 |
|
8-11.8 T |
11.8 |
47.2 |
270 |
140 |
28 |
3.8 |
|
8-17.1 T |
17.1 |
68.4 |
270 |
140 |
32 |
5.05 |
|
8-23 T |
23 |
92 |
270 |
140 |
36 |
6.5 |
|
8-28.1 T |
28.1 |
112.4 |
280 |
155 |
40 |
8.5 |
|
8-35 T |
35 |
140 |
320 |
175 |
45 |
12.2 |
|
8-45 T |
45 |
180 |
350 |
195 |
50 |
16.6 |
|
8-60 T |
60 |
240 |
410 |
220 |
60 |
29.2 |
|
8-85 T |
85 |
340 |
450 |
250 |
70 |
44.3 |
|
8-150 T |
150 |
600 |
500 |
300 |
90 |
86 |
|
