G80 Forged Master Link (TH-91)
■ Powder coated, different color is available as per request.
■ Working load limit permanently shown on the body.
■ Max proof load is 2.5 times of the working load limited.
■ Min. Breaking strength is 5 times of the W.L.L.
|
Size |
W.L.L (t) |
B.L (t) |

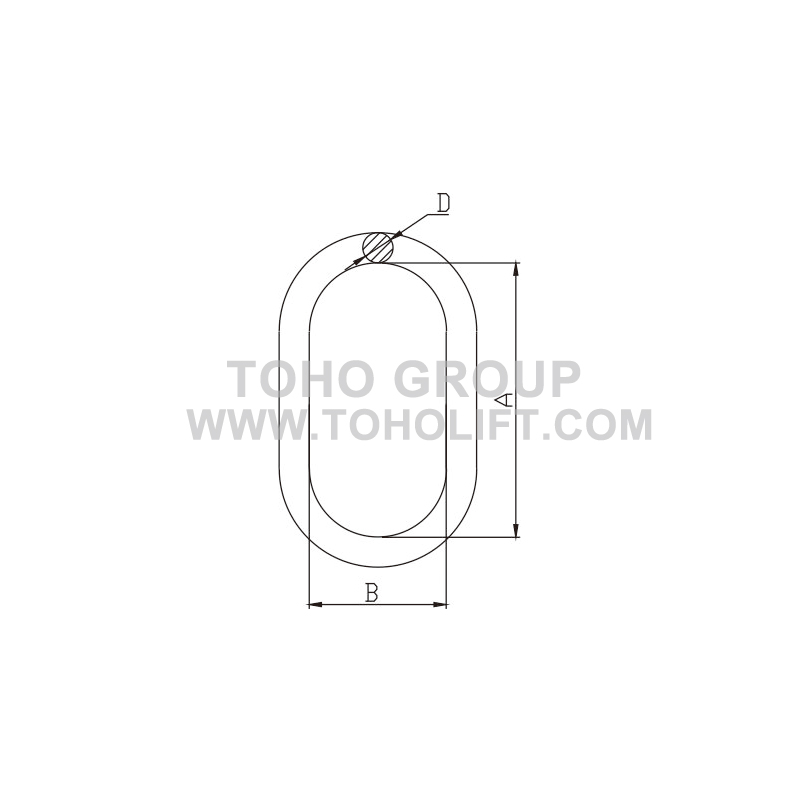

Dimension (mm) |
N.W. (kg/pc) |
||
|
A |
B |
D |
||||
|
1/2" |
2.2 |
11 |
127 |
63.5 |
13 |
0.36 |
|
5/8" |
3 |
15 |
152 |
76 |
16 |
0.7 |
|
3/4" |
4.7 |
23.5 |
140 |
70 |
19 |
0.93 |
|
7/8" |
6.4 |
32 |
160 |
90 |
22 |
1.5 |
|
1" |
11 |
55 |
178 |
89 |
25 |
2.1 |
|
1-1/4" |
16 |
80 |
222 |
111 |
32 |
4.24 |
|
1-1/2" |
21.7 |
108.5 |
267 |
135 |
38 |
7.17 |
|
1-3/4" |
28.4 |
142 |
305 |
152 |
45 |
11.55 |
|
2" |
44.3 |
221.5 |
355 |
178 |
51 |
17.2 |
|
2-1/4" |
65 |
325 |
406 |
203 |
57 |
24.5 |
|
2-1/2" |
66.8 |
334 |
406 |
203 |
63.5 |
30.9 |
|
2-3/4" |
98 |
490 |
406 |
241 |
70 |
39.5 |
|
3" |
103 |
515 |
457 |
228 |
76 |
50.34 |
|
