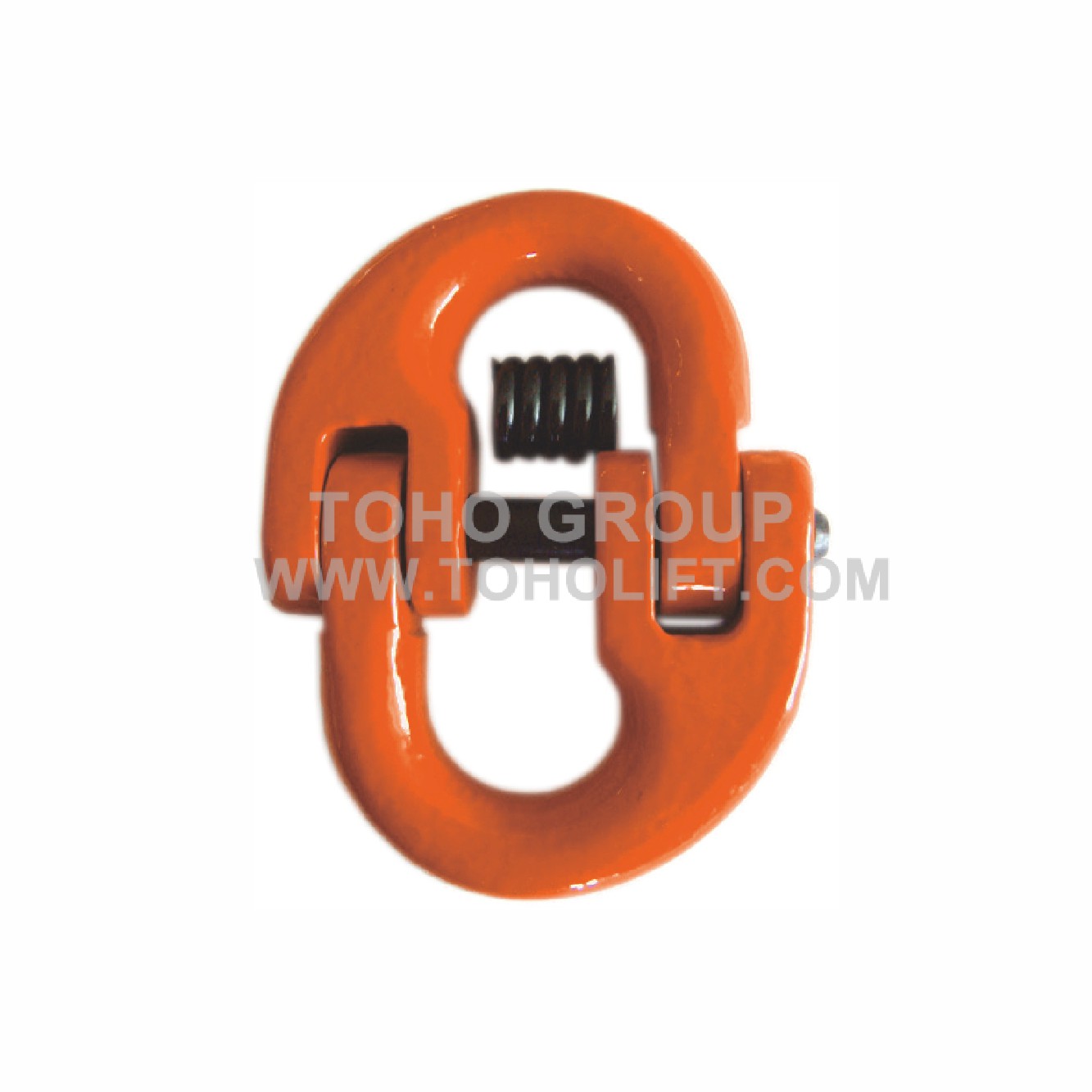

G80 U.S Type Connecting Link (TH-76)
■ Powder coated, different color is available as per request.
■ Working load limit permanently shown on the body.
■ Max proof load is 2.5 times of the working load limited.
■ Min. Breaking strength is 4 times of the W.L.L.
|
Size |
W.L.L (lbs) |
B.L (lbs) |
Dimension (mm) |
N.W. (kg/pc) |
|||
|
|
|
|
A |
L |
K |
H |
|
|
1/4" |
3500 |
14000 |
16.5 |
67 |
51 |
8 |
0.286 |
|
5/16" |
4500 |
18000 |
17 |
78.5 |
58.5 |
10 |
0.32 |
|
3/8" |
7100 |
28400 |
22 |
87.6 |
63.6 |
12 |
0.73 |
|
1/2" |
12000 |
48000 |
28.5 |
115.5 |
85.5 |
15 |
1.67 |
|
5/8" |
18100 |
72400 |
33 |
143 |
106 |
18.5 |
2.86 |
|
3/4" |
28300 |
113200 |
41 |
162 |
116 |
23 |
5.00 |
|
7/8" |
34200 |
136800 |
50.5 |
188.5 |
136.5 |
26 |
7.50 |
|
1" |
47700 |
190800 |
57 |
214.5 |
152.5 |
31 |
11.03 |
|
1-1/4" |
72300 |
289200 |
65 |
265 |
188.7 |
38 |
20.38 |
|
