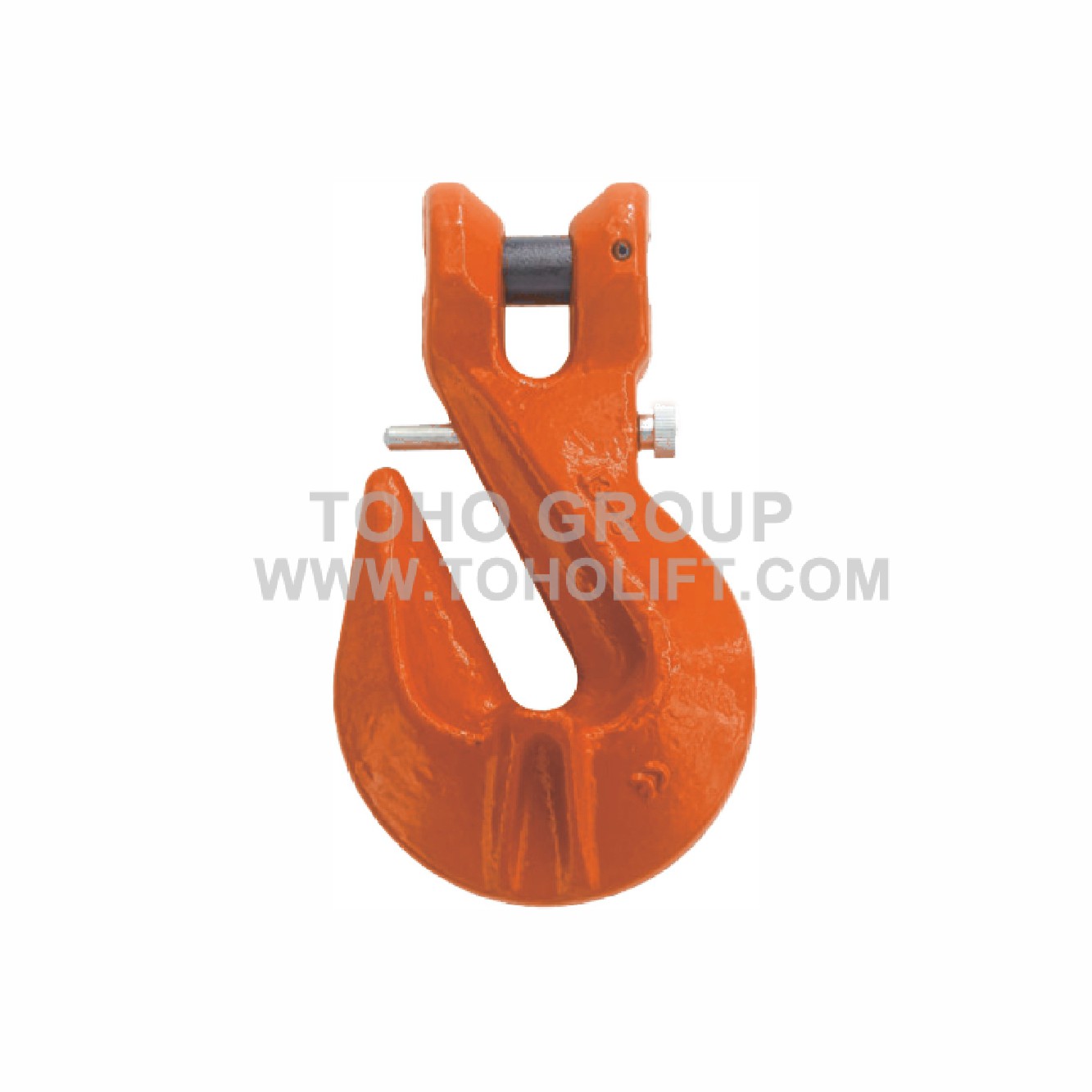

G80 Clevis Shortening Grab Hook with safety Pin (TH-313)
■ Powder coated, different color is available as per request.
■ Working load limit permanently shown on the body.
■ Max proof load is 2.5 times of the working load limited.
■ Min. Breaking strength is 4 times of the W.L.L.
|
Size |
W.L.L |
B.L. |
Dimension (mm) |
N.W. (kg/pc) |
||||
|
|
(t) |
(t) |
A |
B |
E |
M |
L |
|
|
6-8 |
1.12 |
4.48 |
8 |
32 |
8 |
43.5 |
75 |
0.28 |
|
7/8-8 |
2 |
8 |
9.5 |
35 |
11 |
19.5 |
89 |
0.33 |
|
10-8 |
3.15 |
12.6 |
12.5 |
42.5 |
13.2 |
70.5 |
126.5 |
0.88 |
|
13-8 |
5.3 |
21.2 |
15 |
63 |
16.5 |
90 |
163.5 |
1.85 |
|
16-8 |
8 |
32 |
19.5 |
65.5 |
19.2 |
112.5 |
183.5 |
3.24 |
|
