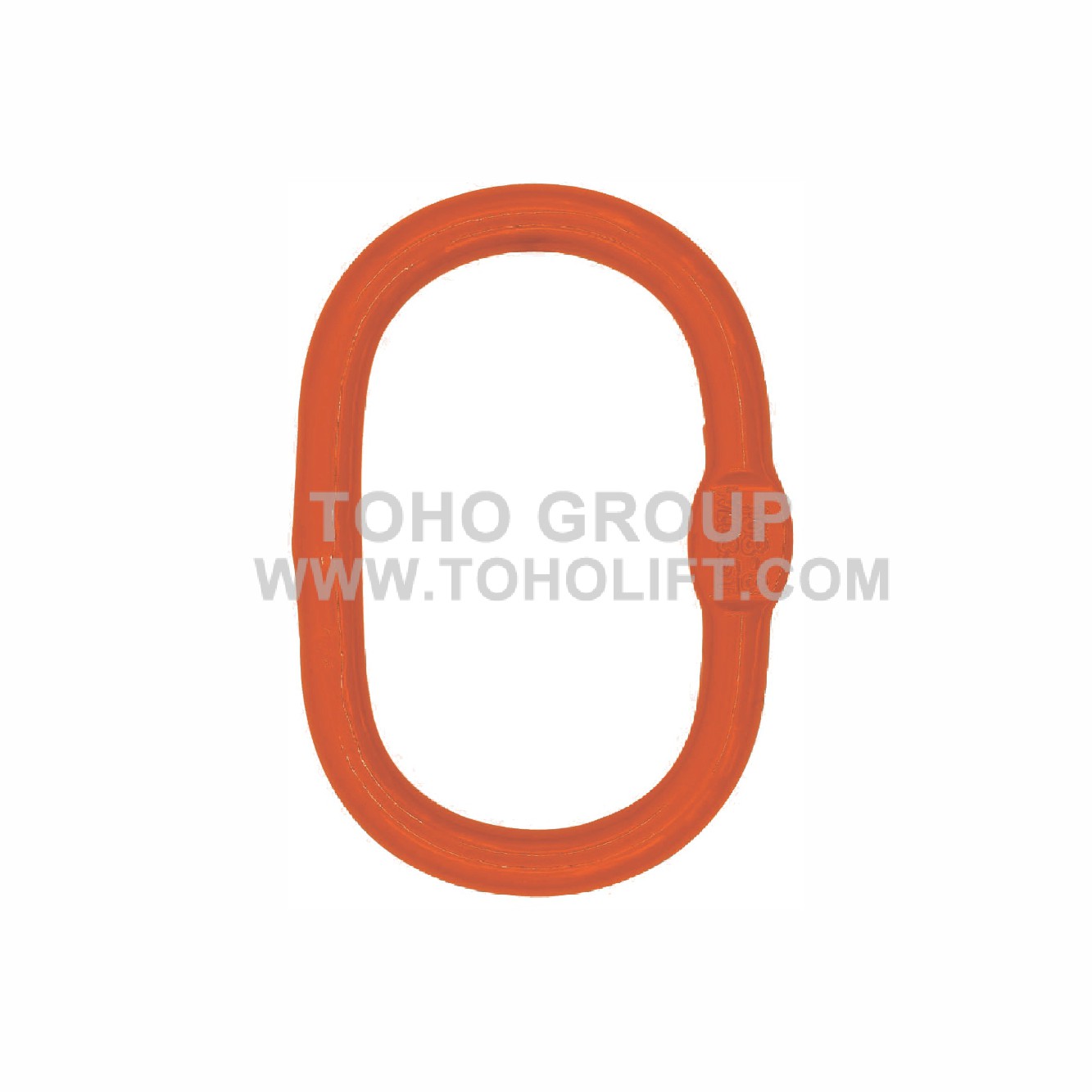

G80 Master Link (TH-33)
■ Powder coated, different color is available as per request.
■ Working load limit permanently shown on the body.
■ Max proof load is 2.5 times of the working load limited.
■ Min. Breaking strength is 4 times of the W.L.L.
Size |
W.L.L (t) |
B.L (t) |

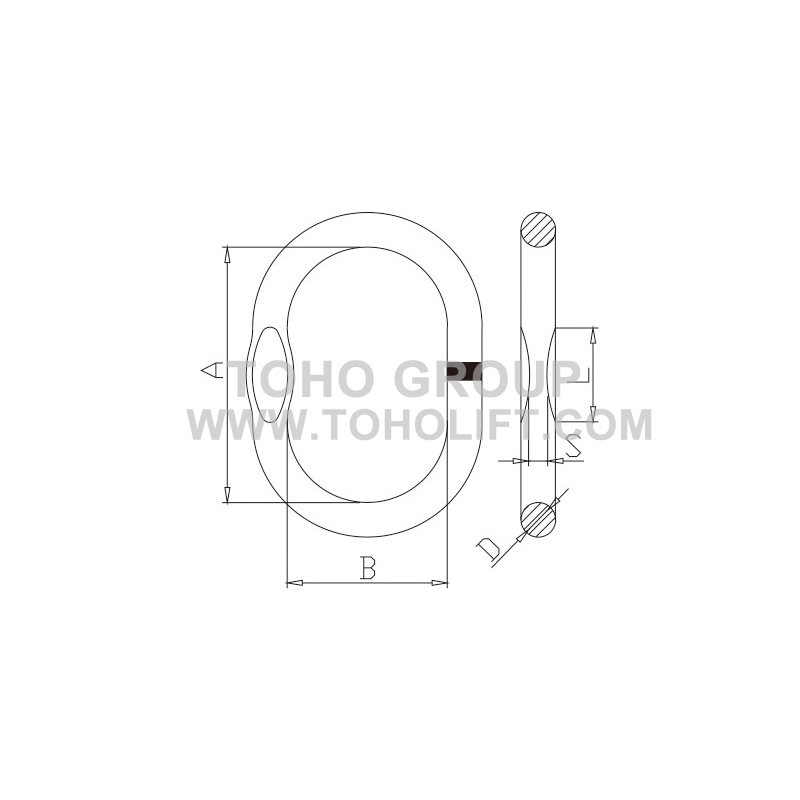

Dimension (mm) |
N.W. (kg/pc) |
||||
A |
B |
D |
S |
L |
||||
7/6-8 |
1.6 |
6.4 |
110 |
60 |
13 |
7 |
25 |
0.34 |
8/7-8 |
2.12 |
8.48 |
110 |
60 |
16 |
7 |
25 |
0.54 |
10/8-8 |
3.15 |
12.6 |
135 |
75 |
18 |
7 |
35 |
0.823 |
13/10-8 |
5.3 |
21.2 |
160 |
90 |
22 |
11 |
35 |
1.5 |
16/13-8 |
8 |
32 |
180 |
100 |
26 |
13 |
45 |
2.32 |
18/16-8 |
11.2 |
44.8 |
200 |
110 |
32 |
17 |
45 |
3.95 |
20/18-8 |
14 |
56 |
260 |
140 |
36 |
- |
- |
6.34 |
22/20-8 |
17 |
68 |
300 |
160 |
40 |
- |
- |
8.96 |
26/22-8 |
21.2 |
84.8 |
340 |
180 |
45 |
- |
- |
12.8 |
32/26-8 |
31.5 |
126 |
350 |
190 |
50 |
- |
- |
16.55 |
36/32-8 |
45 |
180 |
400 |
200 |
56 |
- |
- |
23.28 |
40/36-8 |
56 |
224 |
430 |
220 |
63 |
- |
- |
32 |
