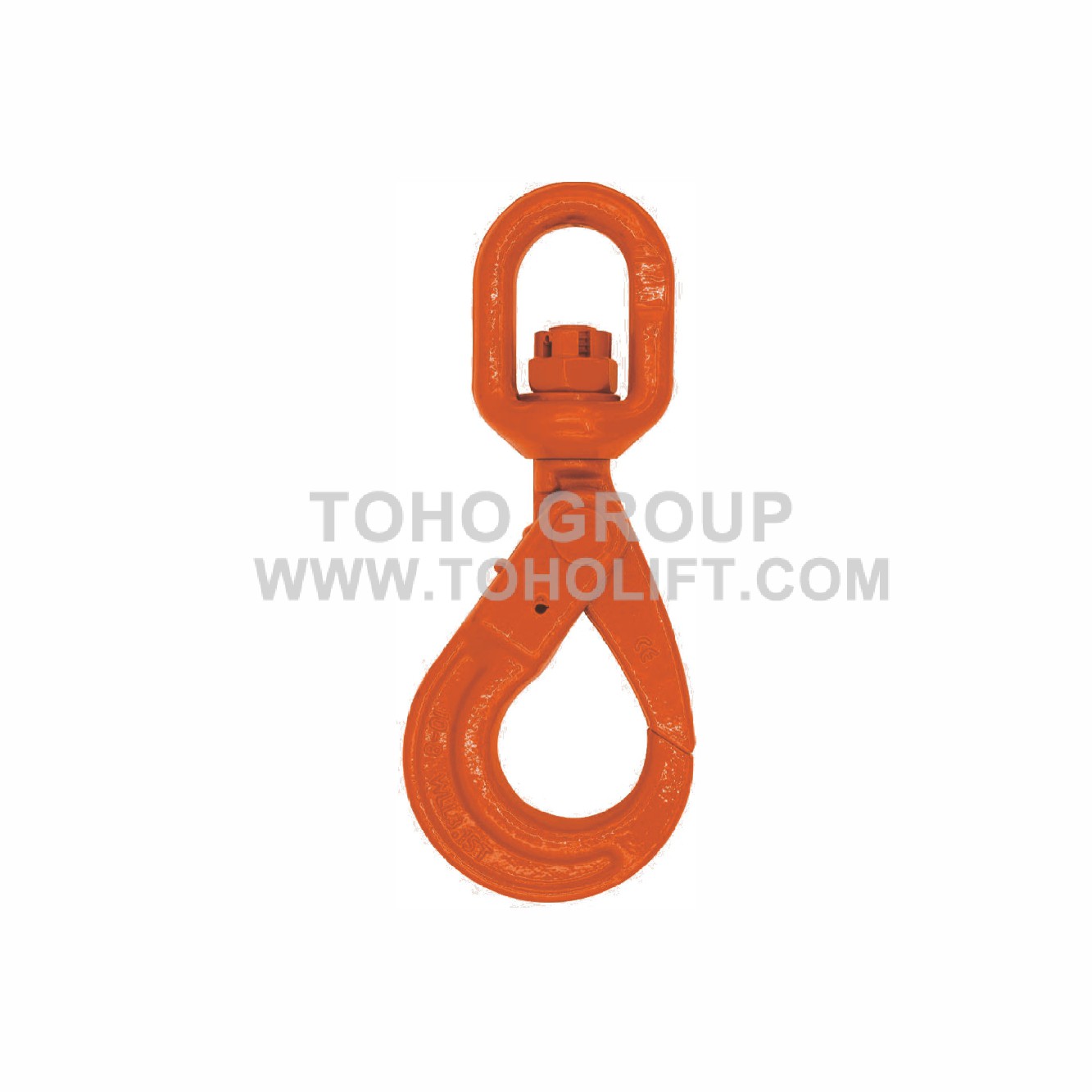

G80 Swivel Self-lock Hook, Improved(TH-755)
■ Powder coated, different color is available as per request.
■ Working load limit permanently shown on the body.
■ Max proof load is 2.5 times of the working load limited.
■ Min. Breaking strength is 4 times of the W.L.L.
|
Size |
W.L.L |
B.L. |
Dimension (mm) |
N.W. (kg/pc) |
|||||
|
(t) |
(t) |
A |
B |
C |
D |
E |
F |
||
|
6-8 |
1.12 |
4.48 |
32.5 |
25.5 |
32 |
28 |
152.5 |
184 |
0.71 |
|
7/8-8 |
2 |
8 |
36 |
29.5 |
40 |
35 |
189 |
228 |
1.15 |
|
10-8 |
3.15 |
12.6 |
42 |
35 |
50 |
45 |
223 |
268 |
1.86 |
|
13-8 |
5.3 |
21.2 |
50 |
41 |
60 |
52.5 |
267 |
324 |
3.51 |
|
16-8 |
8 |
32 |
70 |
58 |
65 |
63 |
330 |
416 |
7.33 |
|
18/20-8 |
12.5 |
50 |
72 |
63 |
82 |
85 |
370 |
452 |
10.3 |
|
22-8 |
15 |
60 |
97 |
98 |
85 |
76 |
466 |
564 |
17.5 |
|
26-8 |
21.2 |
84.8 |
123 |
115 |
112 |
96 |
544 |
661 |
23 |
|
32-8 |
31.5 |
126 |
140 |
147 |
135 |
135 |
679 |
830 |
81 |
|
