G80 U.S Eye Self-Locking Hook (TH-8)
■ Powder coated, different color is available as per request.
■ Working load limit permanently shown on the body.
■ Max proof load is 2.5 times of the working load limited.
■ Min. Breaking strength is 4 times of the W.L.L.
|
Size |
W.L.L (lbs) |
B.L (lbs) |

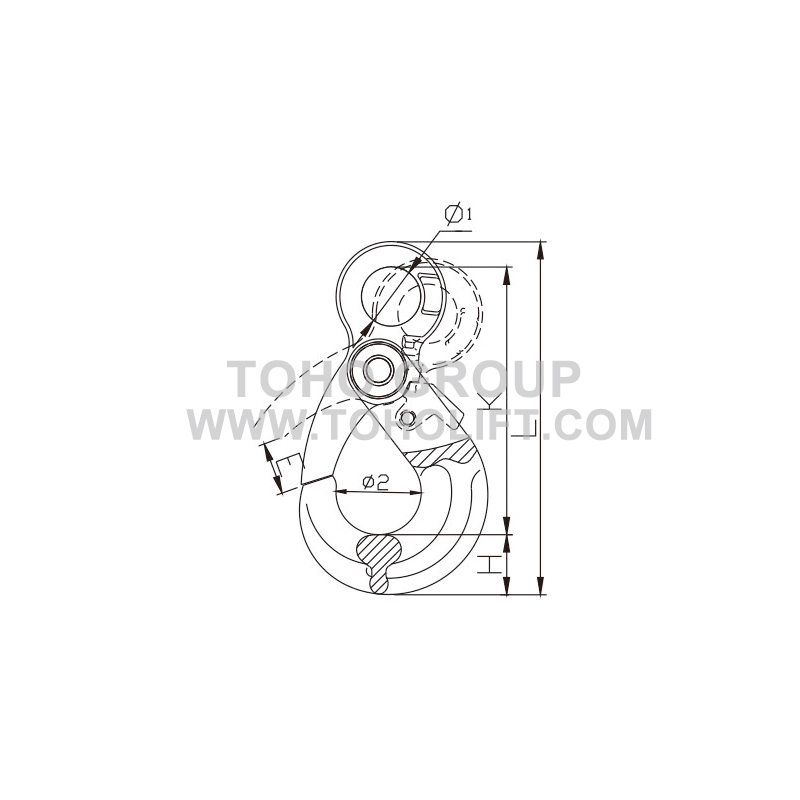

Dimension (mm) |
N.W. (kg/pc) |
|||||
|
|
|
|
Φ1 |
E |
Φ2 |
H |
K |
L |
|
|
7/8-8 |
4500 |
18000 |
25 |
35 |
42 |
29.5 |
132 |
173.5 |
0.98 |
|
10-8 |
7100 |
28400 |
32.5 |
46 |
55 |
34.5 |
171 |
220.5 |
1.85 |
|
13-8 |
12000 |
48000 |
42 |
56 |
64 |
41.5 |
312 |
273.5 |
3.75 |
|
