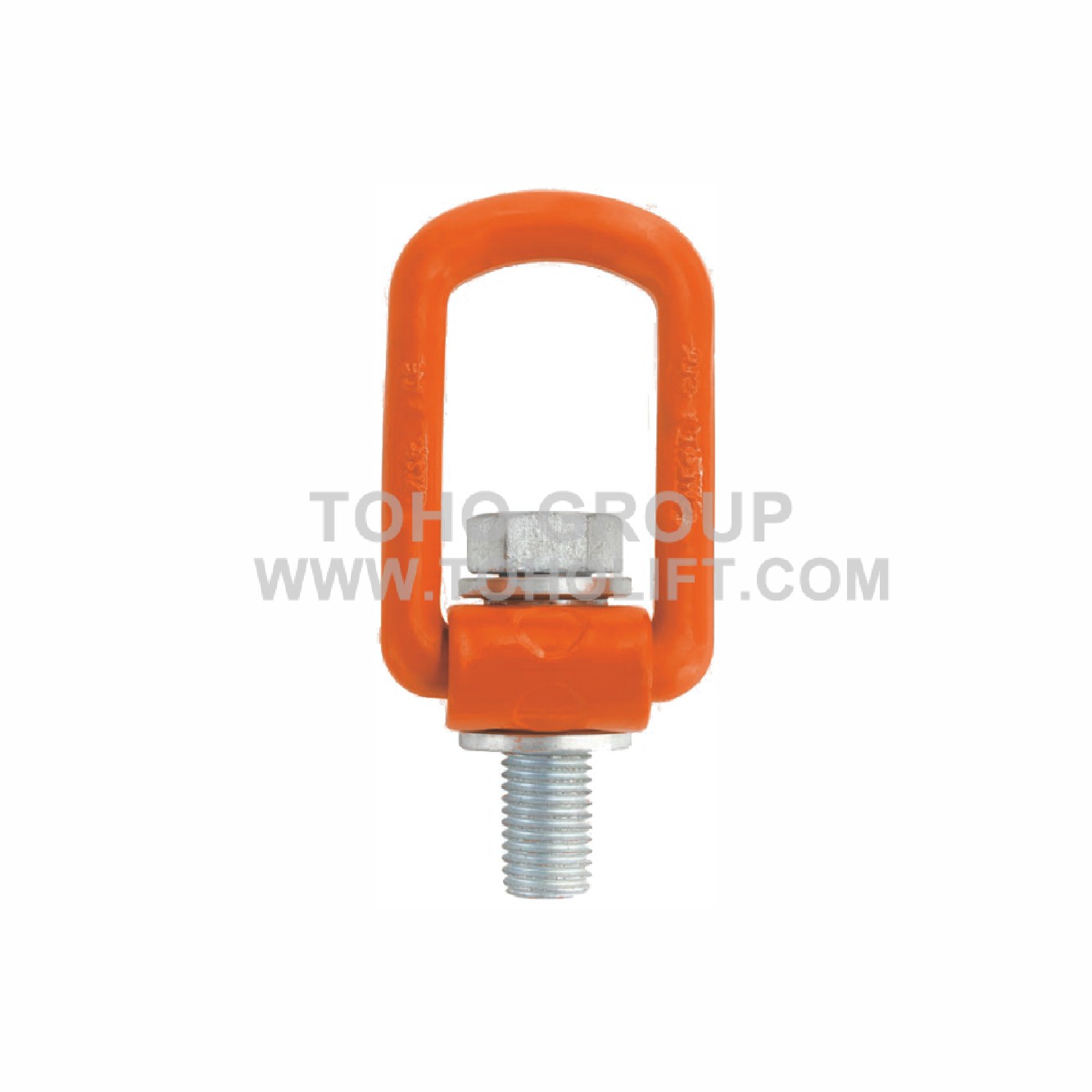

G80 Eye Screw (TH-54)
■ Powder coated, different color is available as per request.
■ Working load limit permanently shown on the body.
■ Max proof load is 2.5 times of the working load limited.
■ Min. Breaking strength is 4 times of the W.L.L.
|
Size |
W.L.L (t) |
Dimension (mm) |
N.W, (kg/pc) |
||||
|
|
0° |
90° |
D |
K |
Φ |
L |
|
|
M6 |
0.4 |
0.15 |
28 |
13 |
16 |
42 |
0.05 |
|
M8 |
1 |
0.4 |
36 |
15 |
20 |
51 |
0.06 |
|
M10 |
1 |
0.4 |
45 |
18 |
25 |
63 |
0.11 |
|
M12 |
2 |
0.75 |
54 |
22 |
30 |
75 |
0.18 |
|
M16 |
4 |
1.5 |
63 |
28 |
35 |
88 |
0.28 |
|
M20 |
6 |
2.3 |
72 |
30 |
40 |
101 |
0.45 |
|
M24 |
8 |
3.2 |
90 |
38 |
50 |
128 |
0.87 |
|
M30 |
12 |
4.5 |
108 |
45 |
60 |
154 |
1.66 |
|
M36 |
16 |
7 |
126 |
55 |
70 |
183 |
2.65 |
|
M42 |
24 |
9 |
144 |
65 |
80 |
212 |
4.03 |
|
M48 |
32 |
12 |
166 |
70 |
90 |
238 |
6.38 |
|
