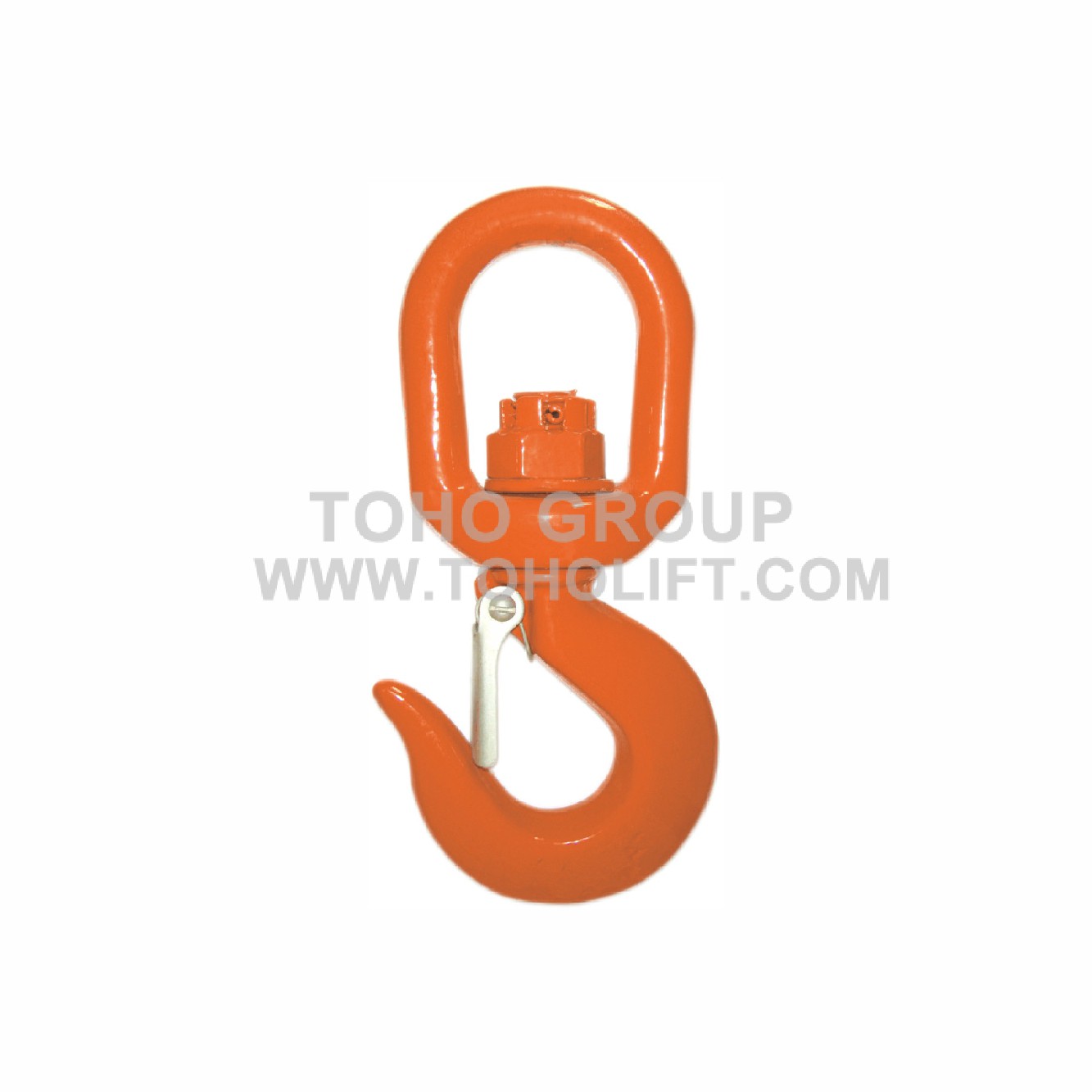

G80 Swivel Hook with Latch (TH-40)
■ Powder coated, different color is available as per request.
■ Working load limit permanently shown on the body.
■ Max proof load is 2.5 times of the working load limited.
■ Min. Breaking strength is 4 times of the W.L.L.
|
Size |
W.L.L |
B.L |
Dimension(mm) |
N.W. |
||||||
|
|
(t) |
(t) |
A |
E |
B |
H |
K |
L |
M |
(kg/pc) |
|
6-8 |
1.12 |
5 |
32 |
22 |
17 |
9 |
109 |
137 |
16 |
0.34 |
|
7/8-8 |
2.0 |
8 |
42 |
21.5 |
35 |
15.8 |
150 |
192 |
21 |
1.02 |
|
10-8 |
3.15 |
12.8 |
42.5 |
26 |
35 |
15.8 |
162.5 |
208.5 |
23 |
1.24 |
|
13-8 |
5.3 |
21.6 |
48 |
32.5 |
39 |
18 |
191 |
246 |
31 |
3.6 |
|
16-8 |
8 |
32.8 |
62 |
43 |
53 |
25 |
243.5 |
313 |
34 |
4.66 |
|
20-8 |
12.5 |
50 |
68 |
49.5 |
51 |
28.5 |
276.5 |
363.5 |
41.5 |
7.4 |
|
22-8 |
15 |
60 |
79 |
54.5 |
65 |
32 |
332 |
431 |
55.7 |
10.6 |
|
26-8 |
21.2 |
84.8 |
105 |
81 |
114 |
40 |
429.5 |
545.5 |
70 |
21.4 |
|
32-8 |
31.5 |
126 |
105 |
100 |
96 |
40 |
465.3 |
596 |
76.2 |
32 |
|
