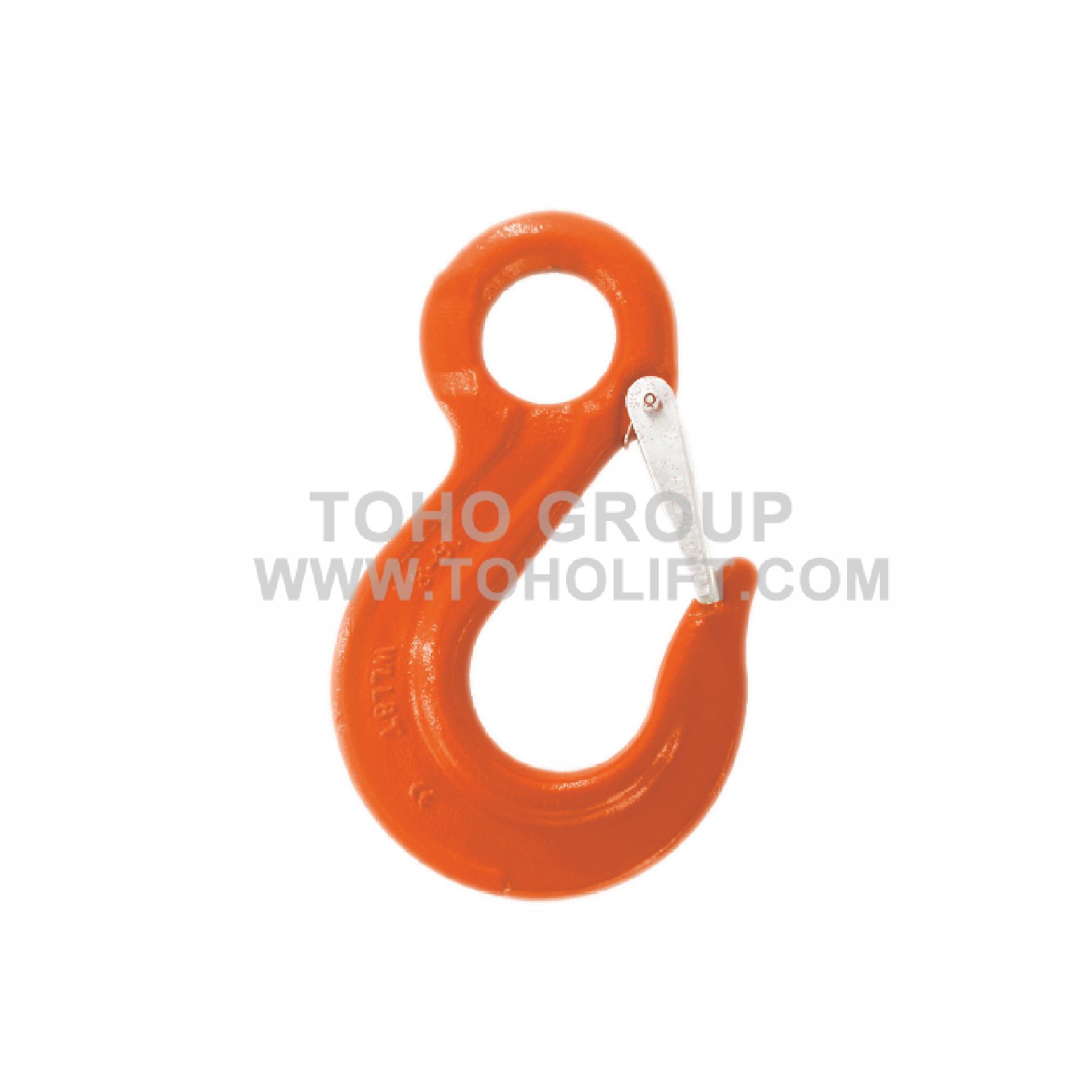

G80 Eye Hook with Latch (TH-39)
■ Powder coated, different color is available as per request.
■ Working load limit permanently shown on the body.
■ Max proof load is 2.5 times of the working load limited.
■ Min. Breaking strength is 4 times of the W.L.L.
|
Size |
W.L.L (t) |
B.L (t) |
Dimension (mm) |
N.W. (kg/pc) |
||||
|
|
|
|
Φ |
E |
H |
K |
L |
|
|
6-8 |
1.12 |
4.48 |
19 |
22 |
19 |
80 |
110 |
0.28 |
|
7/8-8 |
2.0 |
8.0 |
28 |
25 |
25 |
103 |
140.5 |
0.65 |
|
10-8 |
3.15 |
12.6 |
31 |
27.5 |
28 |
118 |
162 |
0.94 |
|
13-8 |
5.3 |
21.2 |
39 |
33 |
35 |
145 |
201 |
1.95 |
|
16-8 |
8 |
32 |
51 |
40 |
45 |
180 |
256 |
3.77 |
|
20-8 |
12.5 |
50 |
62 |
51 |
57 |
230 |
317 |
6.8 |
|
22-8 |
15 |
60 |
73 |
57 |
70 |
260 |
360 |
9.8 |
|
26-8 |
21.2 |
84.8 |
89 |
75 |
76 |
318 |
434 |
16.25 |
|
32-8 |
31.5 |
126 |
90 |
98 |
91 |
360 |
495.5 |
27.5 |
|
