G80 Webbing Sling Connector (TH-1)
■ Powder coated, different color is available as per request.
■ Working load limit permanently shown on the body.
■ Max proof load is 2.5 times of the working load limited.
■ Min. Breaking strength is 4 times of the W.L.L.
|
Size |
W.L.L (t) |
B.L (t) |

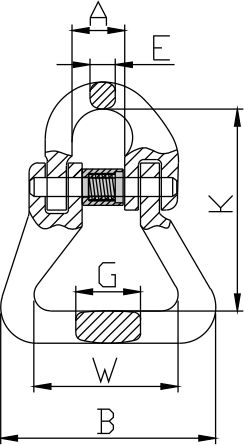

Dimension (mm) |
N.W. (kg/pc) |
|||||
|
|
|
|
A |
B |
K |
W |
G |
E |
|
|
6-8 |
1.12 |
4.48 |
15 |
60 |
56 |
40 |
18 |
7 |
0.2 |
|
7/8-8 |
2.0 |
8.0 |
20 |
61.5 |
63.7 |
40 |
24 |
9.5 |
0.3 |
|
10-8 |
3.15 |
12.6 |
24 |
66 |
83 |
39 |
30.5 |
11 |
0.68 |
|
13-8 |
5.3 |
21.2 |
28 |
88 |
93.7 |
55 |
36.8 |
16.5 |
1.47 |
|
16-8 |
8 |
32 |
34.5 |
108 |
120 |
65.5 |
45.2 |
19.8 |
2.3 |
|
20-8 |
12.5 |
50 |
41 |
129 |
138 |
80 |
51.8 |
23 |
3.3 |
|
