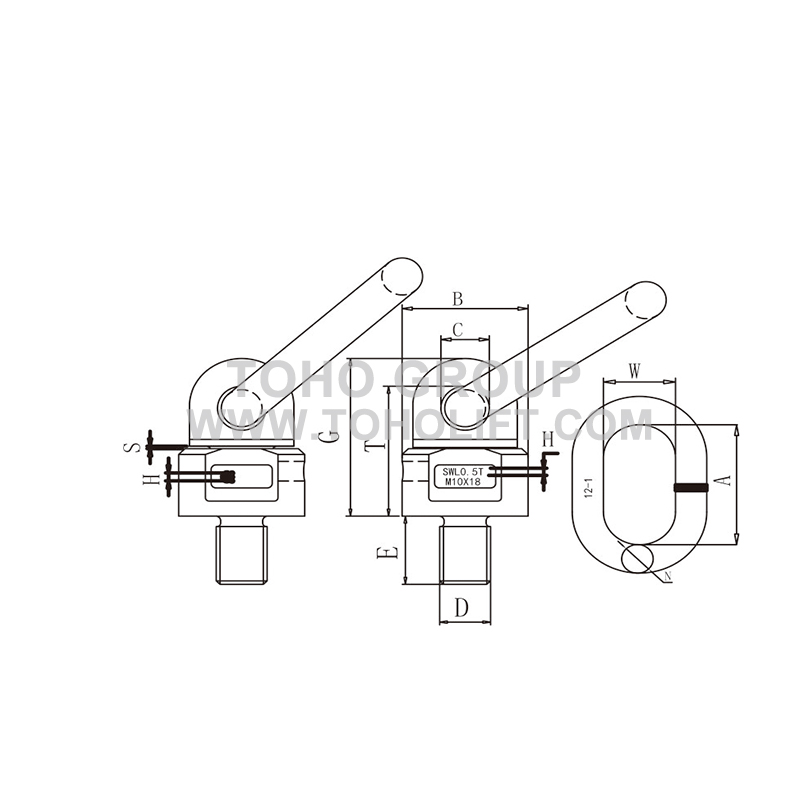

G80 Lifting Screw Point (TH-303)
■ Powder coated, different color is available as per request.
■ Working load limit permanently shown on the body.
■ Max proof load is 2.5 times of the working load limited.
■ Min. Breaking strength is 4 times of the W.L.L.
Size |
W.L.L(t) |
Dimension(mm) |
N.W. |
||||||||||
90° |
0° |
DxE |
B |
C |
G |
T |
A |
W |
N |
H |
S |
(kg/pc) |
|
M8 |
0.3 |
0.6 |
M8x13 |
36 |
16.5 |
51 |
41 |
55 |
30 |
14 |
3 |
1 |
0.41 |
M10 |
0.5 |
0.9 |
M10x18 |
36 |
16.5 |
51 |
41 |
55 |
30 |
14 |
3 |
1 |
0.43 |
M10x90 |
0.5 |
1.0 |
M10x90 |
36 |
16.5 |
51 |
41 |
55 |
30 |
14 |
3 |
1 |
0.38 |
M12 |
0.5 |
1.0 |
M12x18 |
36 |
16.5 |
51 |
41 |
55 |
30 |
14 |
3 |
1 |
0.44 |
M12x40 |
0.5 |
1.0 |
M12x40 |
36 |
16.5 |
51 |
41 |
55 |
30 |
14 |
3 |
1 |
0.52 |
M12x45 |
0.5 |
1.0 |
M12x45 |
36 |
16.5 |
51 |
41 |
55 |
30 |
14 |
3 |
1 |
0.47 |
M12x110 |
0.5 |
1.0 |
M12x110 |
36 |
16.5 |
51 |
41 |
55 |
30 |
14 |
3 |
1 |
0.53 |
M14 |
1.12 |
2.0 |
M14x20 |
36 |
16.5 |
51 |
41 |
55 |
30 |
14 |
3 |
1 |
0.45 |
M16 |
1.12 |
2.0 |
M16x35 |
36 |
16.5 |
52 |
42 |
55 |
30 |
14 |
3 |
1 |
0.46 |
M16x40 |
1.12 |
2.0 |
M16x40 |
36 |
16.5 |
52 |
42 |
55 |
30 |
14 |
3 |
1 |
0.48 |
M16x100 |
1.12 |
2.0 |
M16x100 |
36 |
16.5 |
52 |
42 |
55 |
30 |
14 |
3 |
1 |
0.54 |
M16x120 |
1.12 |
2.0 |
M16x120 |
36 |
16.5 |
52 |
42 |
55 |
30 |
14 |
3 |
1 |
0.6 |
M20 |
2 |
4 |
M20x30 |
4.95 |
19 |
68 |
56 |
70 |
35 |
16 |
3.5 |
1 |
0.96 |
M20x120 |
2 |
4 |
M20x120 |
4.95 |
19 |
68 |
56 |
70 |
35 |
16 |
3.5 |
1 |
1.17 |
M24 |
3.15 |
6.3 |
M24x40 |
57 |
22 |
78 |
65.5 |
85 |
40 |
18 |
3.5 |
1.5 |
1.45 |
M24x40 |
3.15 |
6.3 |
M24x40 |
57 |
22 |
78 |
65.5 |
85 |
40 |
18 |
3.5 |
1.5 |
1.42 |
M24x90 |
3.15 |
6.3 |
M24x90 |
57 |
22 |
78 |
65.5 |
85 |
40 |
18 |
3.5 |
1.5 |
1.66 |
M24x120 |
3.15 |
6.3 |
M24x120 |
57 |
22 |
78 |
65.5 |
85 |
40 |
18 |
3.5 |
1.5 |
1.74 |
M27 |
3.15 |
6.3 |
M27x35 |
57 |
22 |
78 |
65.5 |
85 |
40 |
20 |
3.5 |
1.5 |
1.47 |
M30(5T) |
5.3 |
10.6 |
M30x35 |
66 |
23.5 |
96.5 |
80.5 |
85 |
40 |
20 |
4 |
1.5 |
2.17 |
M30x38 |
5.3 |
10.6 |
M30x38 |
66 |
23.5 |
96.5 |
80.5 |
85 |
40 |
20 |
4 |
1.5 |
2.18 |
M30x120 |
5.3 |
10.6 |
M30x120 |
66 |
23.5 |
96.5 |
80.5 |
85 |
40 |
22 |
4 |
1.5 |
2.65 |
M30(8T) |
8 |
11.8 |
M30x35 |
80 |
28 |
112 |
92 |
115 |
50 |
22 |
6 |
2 |
3.57 |
M30x38 |
8 |
11.8 |
M30x38 |
80 |
28 |
112 |
92 |
115 |
50 |
22 |
6 |
2 |
3.58 |
M30x120 |
8 |
11.8 |
M30x120 |
80 |
28 |
112 |
92 |
115 |
50 |
22 |
6 |
2 |
4.01 |
M36x90 |
8 |
11.8 |
M36x90 |
80 |
27 |
109 |
89.5 |
115 |
50 |
22 |
6 |
2 |
4.17 |
M36x400 |
8 |
11.8 |
M36x400 |
80 |
27 |
109 |
89.5 |
115 |
50 |
22 |
6 |
2 |
6.41 |
M39 |
8 |
11.8 |
M39x50 |
80 |
27 |
109 |
89.5 |
115 |
50 |
22 |
6 |
2 |
3.65 |
M39x90 |
8 |
11.8 |
M39x90 |
80 |
27 |
109 |
89.5 |
115 |
50 |
22 |
6 |
2 |
3.71 |
M42 |
10 |
15 |
M42x50 |
80 |
27 |
109 |
89.5 |
115 |
50 |
25 |
6 |
2.5 |
3.62 |
M42x60 |
10 |
15 |
M42x60 |
80 |
27 |
109 |
89.5 |
115 |
50 |
25 |
6 |
2.5 |
6.72 |
M42x130 |
10 |
15 |
M42x130 |
80 |
27 |
109 |
89.5 |
115 |
50 |
25 |
6 |
2.5 |
4.46 |
M42x180 |
10 |
15 |
M42x180 |
80 |
27 |
109 |
89.5 |
115 |
50 |
25 |
6 |
2.5 |
5.0 |
M45x60 |
10 |
15 |
M45x60 |
80 |
27 |
109 |
89.5 |
115 |
50 |
25 |
6 |
2.5 |
4.17 |
M48 |
10 |
15 |
M48x50 |
80 |
27 |
109 |
89.5 |
115 |
50 |
25 |
6 |
2.5 |
4.02 |
M48x110 |
10 |
15 |
M48x110 |
80 |
27 |
109 |
89.5 |
115 |
50 |
25 |
6 |
2.5 |
4.8 |
M56x84 |
15 |
25 |
M56x84 |
117 |
42 |
310 |
280 |
152 |
70 |
32 |
7 |
2.5 |
11.6 |
M64x95 |
15 |
25 |
M6x95 |
117 |
42 |
310 |
280 |
152 |
70 |
32 |
7 |
2.5 |
12.4 |
