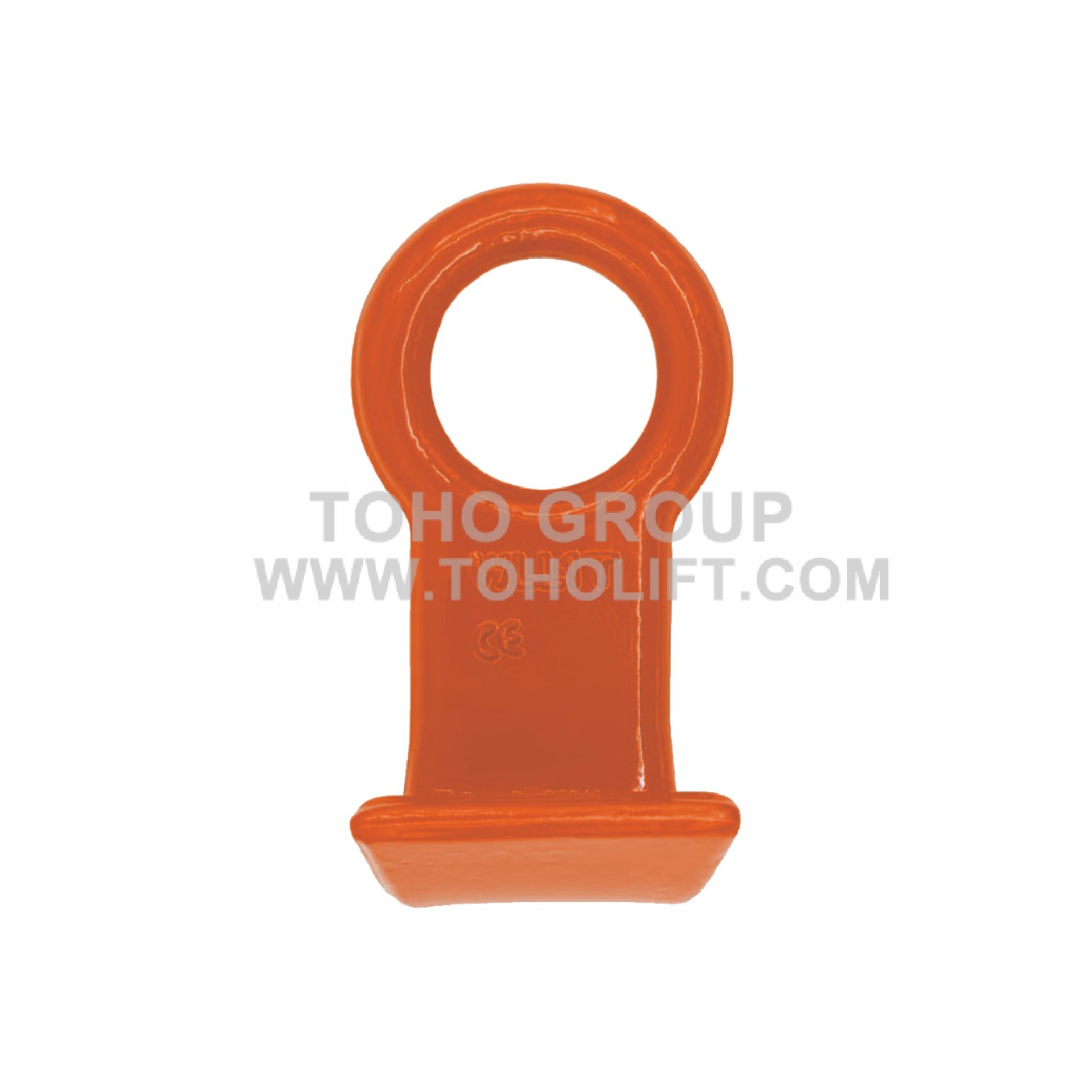

G80 Welded Hook Light Type (TH-106)
■ Powder coated, different color is available as per request.
■ Working load limit permanently shown on the body.
■ Max proof load is 2.5 times of the working load limited.
■ Min. Breaking strength is 4 times of the W.L.L.
|
Size |
W.L.L (t) |
B.L (t) |
Dimension (mm) |
N.W. (kg/pc) |
|||
|
|
|
|
B |
E |
F |
L |
|
|
1.1T |
1.1 |
5.5 |
53 |
18 |
18 |
87 |
0.35 |
|
2.0T |
2 |
10 |
63.5 |
26 |
26 |
112 |
0.55 |
|
3.2T |
3.2 |
16 |
75 |
30 |
30 |
127.5 |
0.87 |
|
5.3T |
5.3 |
26.5 |
92.5 |
35 |
35 |
160 |
1.75 |
|
8.0T |
8.0 |
40 |
106 |
40 |
40 |
180 |
2.98 |
|
12.5T |
12.5 |
62.5 |
140 |
51 |
49 |
236 |
6.16 |
|
