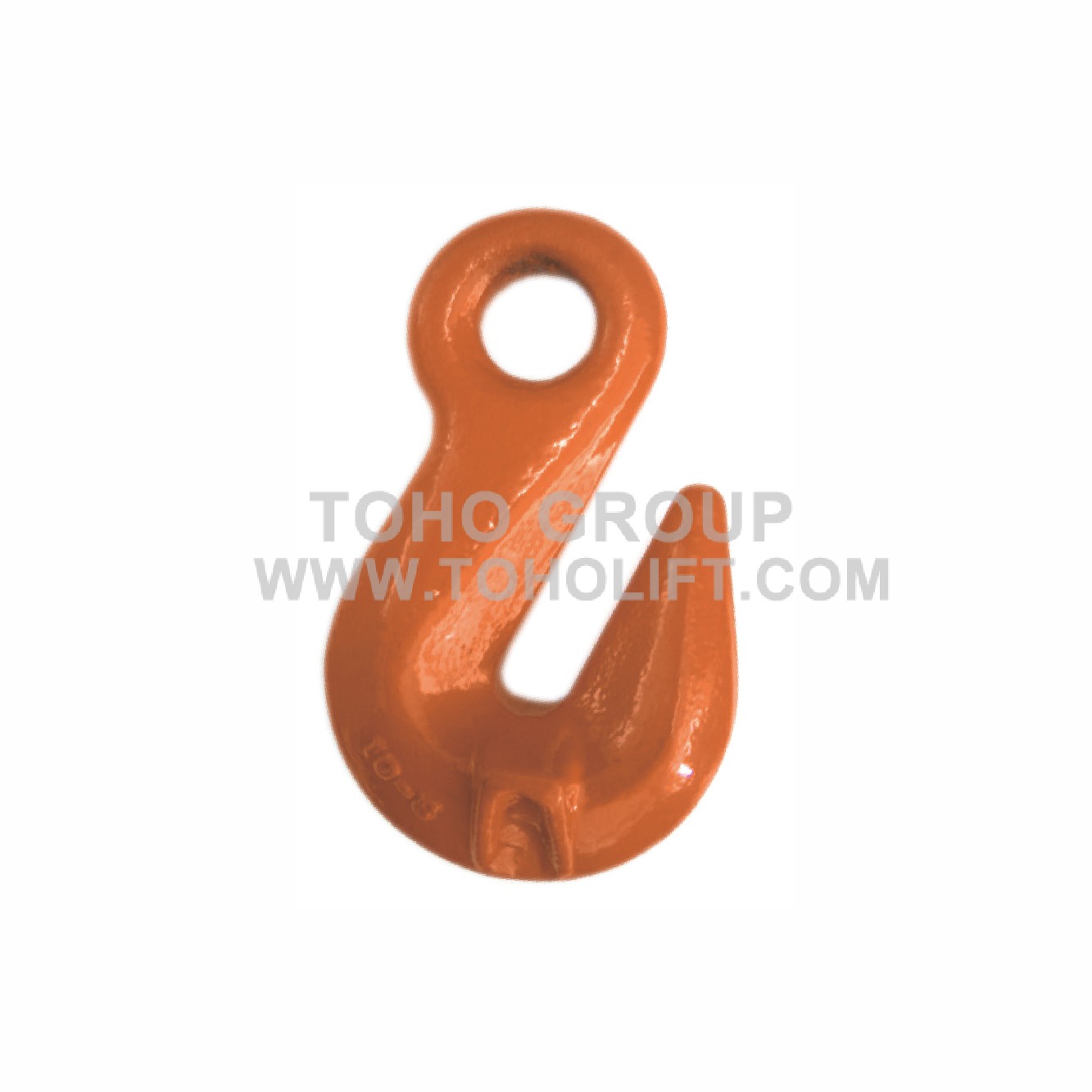

G80 Eye Shortening Grab Hook (TH-85)
■ Powder coated, different color is available as per request.
■ Working load limit permanently shown on the body.
■ Max proof load is 2.5 times of the working load limited.
■ Min. Breaking strength is 4 times of the W.L.L.
|
Size |
W.L.L (t) |
B.L (t) |
Dimension (mm) |
N.W (kg/pc) |
||||
|
|
|
|
E |
Φ |
H |
R |
L |
|
|
6-8 |
1.12 |
4.48 |
8 |
13.5 |
16 |
51 |
75.2 |
0.14 |
|
7/8-8 |
2.0 |
8.0 |
10.8 |
17 |
18.5 |
60.5 |
88.5 |
0.245 |
|
10-8 |
3.15 |
12.6 |
13 |
20 |
29 |
79.5 |
121.5 |
0.65 |
|
13-8 |
5.3 |
21.2 |
16.5 |
26 |
42.8 |
99.7 |
158 |
1.39 |
|
16-8 |
8 |
32 |
19.2 |
30 |
45.7 |
104 |
169 |
2.2 |
|
20-8 |
12.5 |
50 |
24 |
37 |
56 |
140 |
219 |
4.6 |
|
22-8 |
15 |
60 |
28 |
44 |
68 |
165 |
259 |
8.2 |
|
26-8 |
21.2 |
84.8 |
30 |
41 |
77 |
188.5 |
298 |
9.8 |
|
32-8 |
31.5 |
126 |
38 |
57 |
95 |
228.5 |
361 |
19.34 |
|
