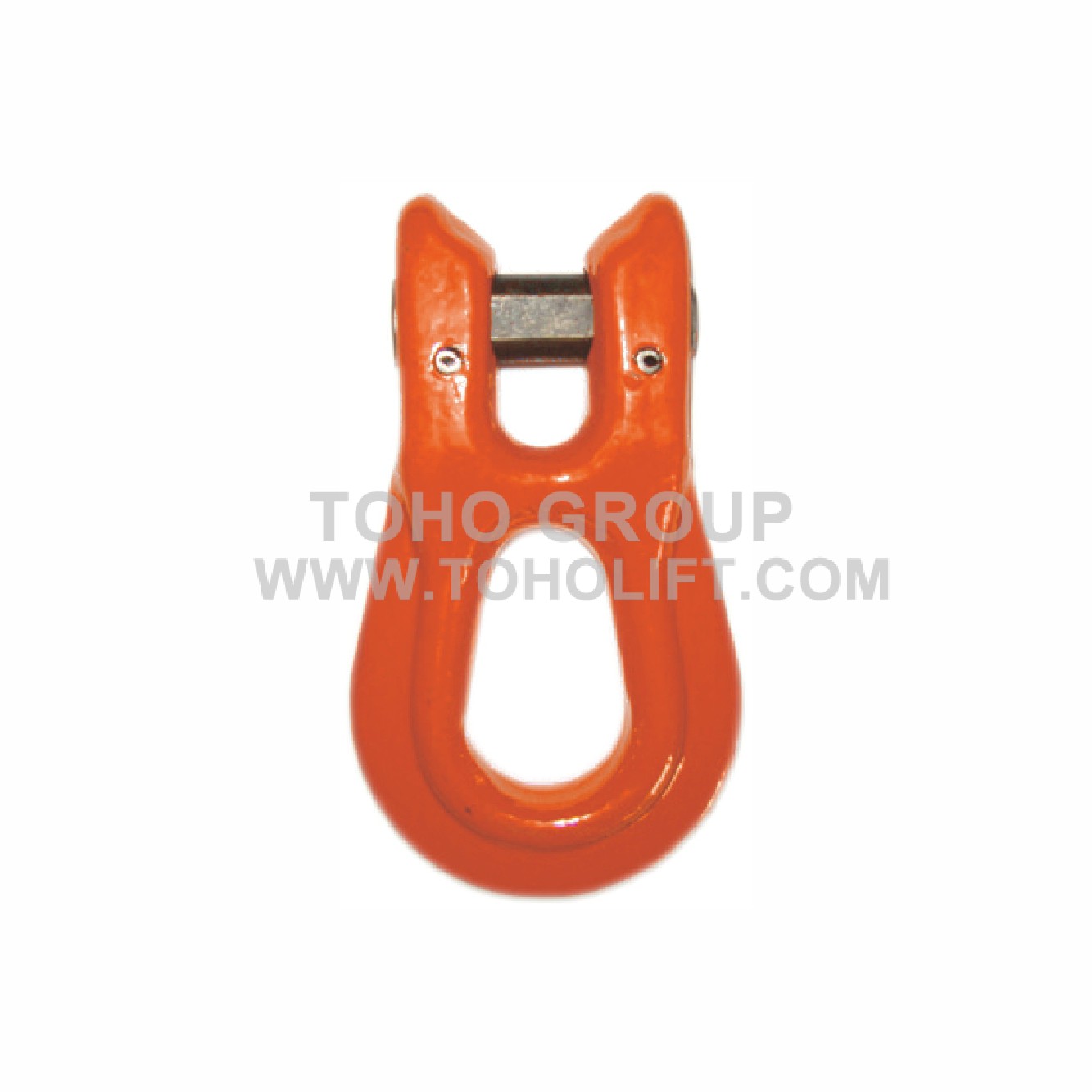

G80 Long Shape Omega Link (TH-5)
■ Powder coated, different color is available as per request.
■ Working load limit permanently shown on the body.
■ Max proof load is 2.5 times of the working load limited.
■ Min. Breaking strength is 4 times of the W.L.L.
|
Size |
W.L.L (t) |
B.L (t) |
Dimension (mm) |
N.W. (kg/pc) |
||||
|
|
|
|
A |
B |
D |
K |
L |
|
|
6-8 |
1.12 |
4.48 |
8 |
28 |
20 |
47.5 |
75 |
0.12 |
|
7/8-8 |
2.0 |
8.0 |
10.5 |
32.5 |
25 |
59 |
92 |
0.17 |
|
10-8 |
3.15 |
12.6 |
13 |
45.5 |
30 |
78.5 |
123 |
0.43 |
|
13-8 |
5.3 |
21.2 |
15 |
57.5 |
46 |
94 |
154 |
1.00 |
|
