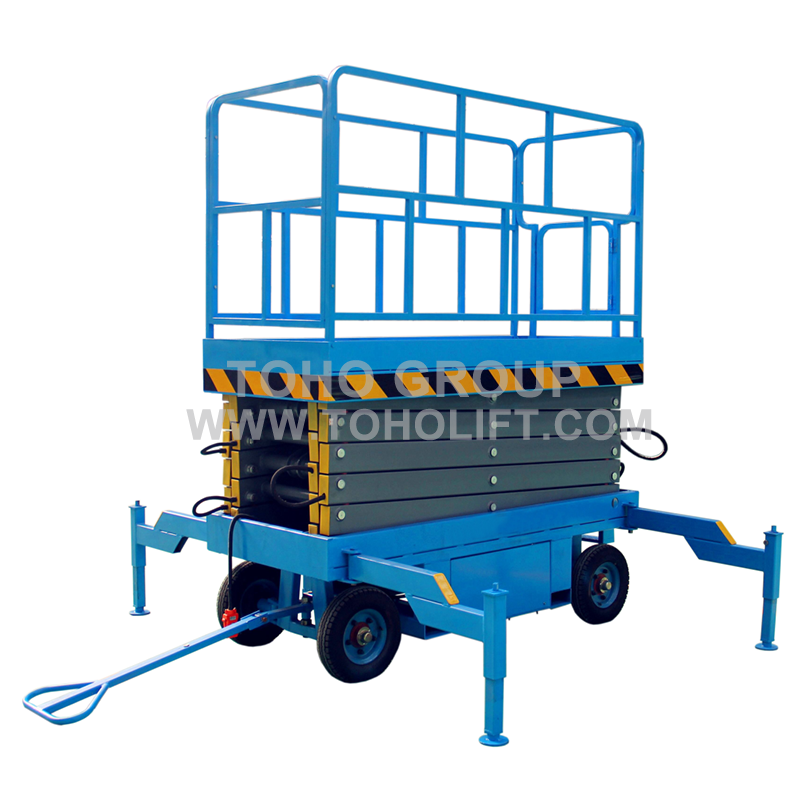

SCISSOR TYPE ELEVATING MOBILE LIFT PLATFORM
The mobile lift tables are widely used in warehouse, airports, railway stations, factories, exhibition halls, hotels, hospitals, shopping malls,
stadiums and other places of high altitude for inspection, installation, maintenance, decoration, cleaning and etc.
|
Model |
Load Capacity (kg) |
Lifting Height (mm) |
Plate Size (mm) |
Overall Dimension (mm) |
Motor Power (kw) |
Voltage (V) |
Overall Net Weight (kg) |
|
THJY0.3-4 |
300 |
4000 |
2100x 830 |
2250 x 950 x 1100 |
2.2 |
380v/50hz |
800 |
|
THJY0.3-6 |
300 |
6000 |
2100 x 830 |
2250 x 950 x 1200 |
2.2 |
380v/50hz |
900 |
|
THJY0.3-8 |
300 |
8000 |
2100 x 930 |
2250 x 1060 x 1380 |
2.2 |
380v/50hz |
1050 |
|
THJY0.5-8 |
500 |
8000 |
2100 x 930 |
2250 x 1060 x 1380 |
3 |
380v/50hz |
1150 |
|
THJY0.3-10 |
300 |
10000 |
2100 x 1230 |
2250 x 1350 x 1530 |
2.2 |
380v/50hz |
1360 |
|
THJY0.5-10 |
500 |
10000 |
2120 x 1230 |
2250 x 1350 x 1530 |
3 |
380v/50hz |
1450 |
|
THJY1-10 |
1000 |
10000 |
2100 x 1200 |
2250 x 1350 x 1530 |
3 |
380v/50hz |
1700 |
|
THJY0.3-12 |
300 |
12000 |
2550 x 1530 |
2796 x 1670 x 1750 |
3 |
380v/50hz |
2260 |
|
THJY0.5-12 |
500 |
12000 |
2550 x 1530 |
27960x 1670 x 1750 |
3 |
380v/50hz |
2400 |
|
THJY0.3-14 |
300 |
14000 |
2812 x 1530 |
3067 x 1730 x 1810 |
3 |
380v/50hz |
2450 |
|
THJY0.3-16 |
300 |
16000 |
2812 x 1600 |
3067 x 1810 x 2080 |
3 |
380v/50hz |
3500 |
|
THJY0.3-18 |
300 |
18000 |
3070 x 1600 |
3321 x 1810 x 2080 |
3 |
380v/50hz |
3950 |
|
