PALLET TRUCK
Innovative design, comprehensive testing and high quality
Most standard and popular model with capacity 2000, 2500, 3000 and 5000kg.
Material: 4mm alloy steel plate makes strength 6 times higher than mild steel
material.
Wheels: PU wheel is heavy with little noise, more applicable for indoor use with smooth ground. Nylon wheel is more applicable for rough ground of outdoor.

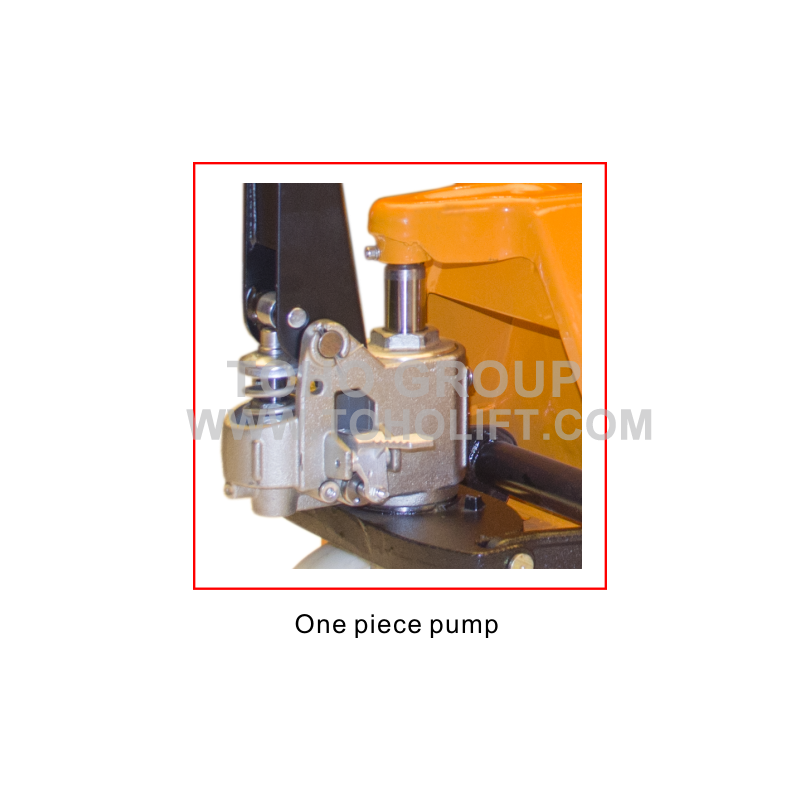

One piece pump design provides oil leak-proof and eliminate maintenance and
extend the service time.
30mm hand grip size with ergonomic rubber wrap is more strong and comfortable for easy operation.
Shaft and pin connection is much easier for installation or replace of the handle.
Reinforced rib design under the supporting frame provide higher strength.
3 position hand control - Raise, Lower, Neutral
Adjustable pump cap ensure a long service life.
Option:
1. Pump: Casting (one piece) pump or welding pump

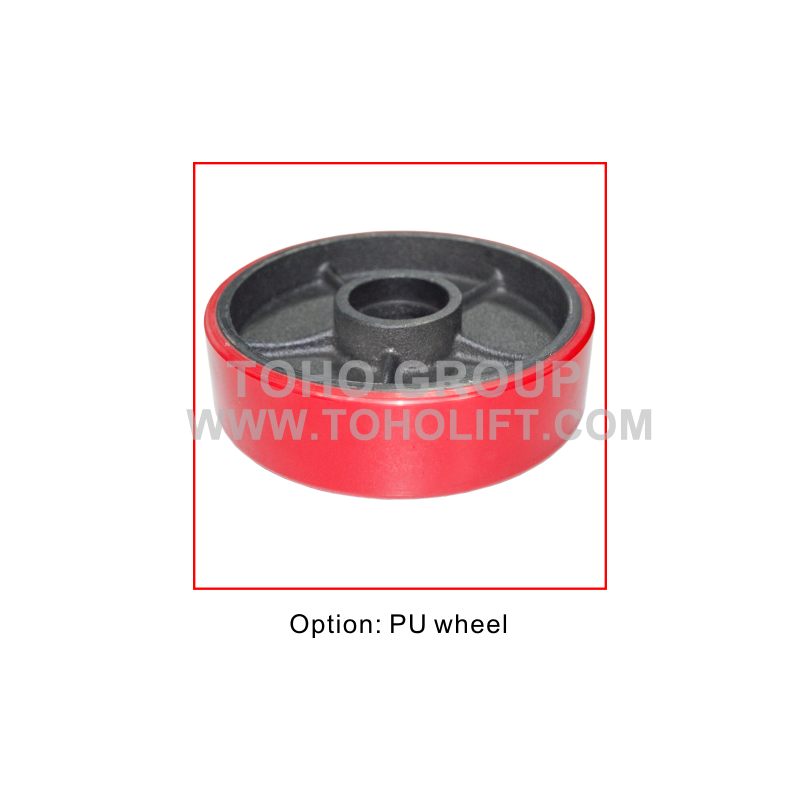

2. Wheel: Nylon wheel or PU wheel
3. Fork width: 550mm or 685mm
4. Color: as per customer’s requirement
Capacity |
kg |
2000 |
2500 |
3000 |
5000 |
Min. Fork Height |
H(mm) |
80 |
80 |
80 |
80 |
Max. Fork Height |
H1(mm) |
200 |
190-200 |
190-200 |
195 |
Max. Lifting Height |
mm |
>110 |
>110 |
>110 |
>110 |

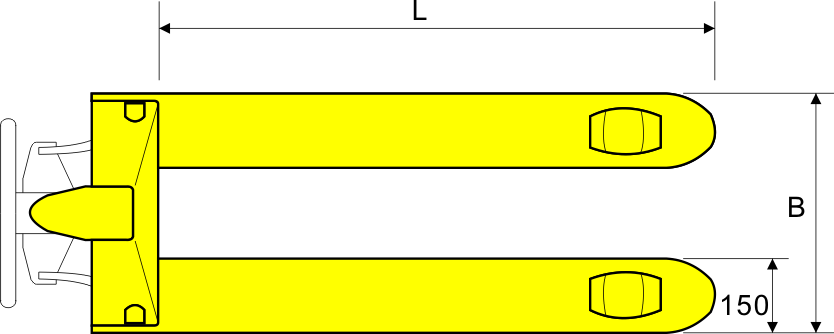

Fork Width |
B(mm) |
550/685 |
550/685 |
550/685 |
685 |
Fork Length |
L(mm) |
1200 |
1200 |
1200 |
1200 |
Fork Size |
mm |
150x55 |
150x55 |
160x60 |
180x50 |
Tandem Loading Wheel |
mm |
Φ80x70 |
Φ80x70 |
Φ80x70 |
Φ80x67 |
Steering Wheel |
mm |
Φ180x50 |
Φ180x50 |
Φ180x50 |
Φ180x60 |
Material of Wheel |
mm |
Nylon/PU |
Nylon/PU |
Nylon/PU |
Nylon/PU |
Net Weight |
kg |
68/70 |
73/75 |
78/80 |
140 |
