INTERNAL COMBUSTION FORKLIFT
THLG50DTIII/THLG60DTIII/THLG70DTIII/THLG85DTIII/THLG100DTIII
|
MODEL |
THLG50DTIII |
THLG60DTIII |
THLG70DTIII |
THLG85DTIII |
THLG100DTIII |
|
Rated Power(KW/rmp) |
83 |
83 |
83 |
83 |
83 |
|
Rated Capacity(kg) |
5000 |
6000 |
7000 |
8500 |
10000 |
|
Power Type |
Diesel |
Diesel |
Diesel |
Diesel |
Diesel |
|

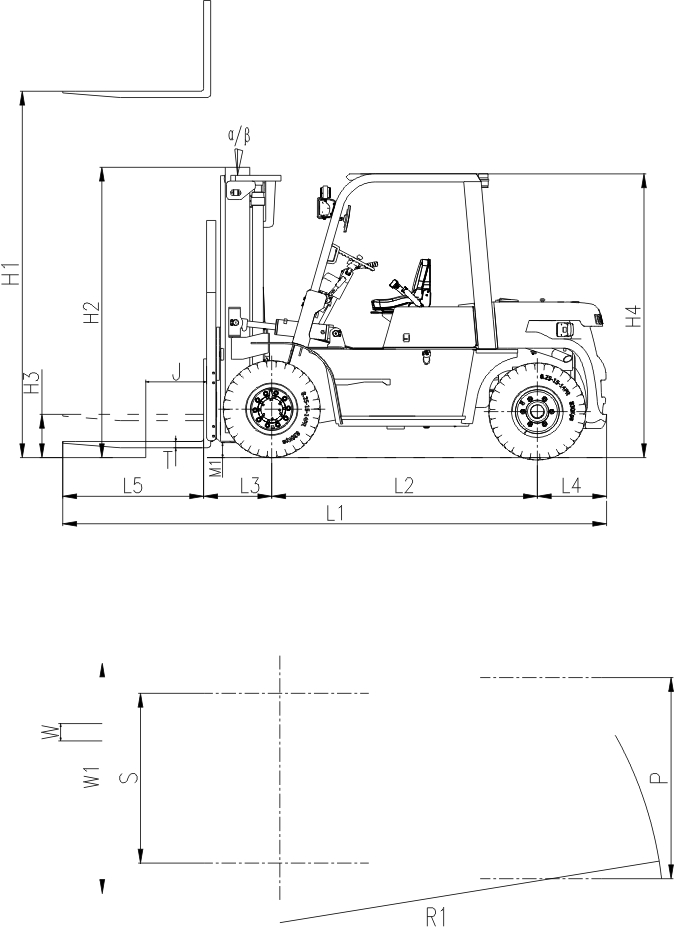

(J) Load Center(mm) |
600 |
600 |
600 |
600 |
600 |
|
(H1) STD Max Lifting Height(mm) |
3000 |
3000 |
3000 |
3000 |
3000 |
|
(H3) Free Lifting Height(mm) |
200 |
200 |
200 |
200 |
200 |
|
(L5*W*T) STD Fork Size(mm) |
1220x150x60 |
1220x150x60 |
1220x150x60 |
1520x170x70 |
1520x175x85 |
|
Mast tilt angle(deg) |
6/12 |
6/12 |
6/12 |
6/12 |
6/12 |
|
(L3) Front Overhang(mm) |
595 |
595 |
600 |
705 |
720 |
|
(L4) Rear Overhang(mm) |
600 |
675 |
720 |
740 |
740 |
|
Overall Dimension |
|
|
|
|
|
|
(L1) Overall length(with fork)(mm) |
4715 |
4715 |
4840 |
5465 |
5780 |
|
(W1) Overall Width(with fork)(mm) |
1995 |
1995 |
1995 |
2165 |
2165 |
|
(H2) STD Mast lowered height(mm) |
2500 |
2500 |
2500 |
2700 |
2700 |
|
(H4) Overhead guard height(mm) |
2450 |
2450 |
2450 |
2560 |
2560 |
|
(R1) Min.turning radius(mm) |
3240 |
3240 |
3370 |
3700 |
3900 |
|
Min.intersecting aisle(mm) |
5040 |
5040 |
5170 |
5605 |
5620 |
|
Performance Data |
|
|
|
|
|
|
Max.traveling speed(km/h) load/unload |
24/29 |
24/29 |
24/29 |
24/28 |
24/28 |
|
Max.lifting speed(mm/s) load/unload |
510/530 |
510/530 |
500/530 |
390/420 |
330/350 |
|
Max.gradient(%) |
38 |
35 |
32 |
20 |
20 |
|
Self weight(kg) |
8250 |
8950 |
9600 |
12300 |
13500 |
|
(L2) Axle distance(mm) |
2300 |
2300 |
2300 |
2500 |
3000 |
|
STD Engine |
XINCHAI CA6310 |
XINCHAI CA6310 |
XINCHAI CA6310 |
XINCHAI CA6310 |
XINCHAI CA6310 |
|
Rated power(KW) |
83 |
83 |
83 |
83 |
83 |
|
