Model |
YTG-010 |
YTG-020 |
YTG-030 |
YTG-050 |
YTG-10 |
YTG-20 |
|
|
capacity |
t |
1 |
2 |
3 |
5 |
10 |
20 |
|
Standard lift |
m |
3 |
3 |
3 |
3 |
3 |
3 |
|
Effort required to lift rated load |
N |
305 |
340 |
350 |
370 |
380 |
390 |
|
Running test load |
kN |
15 |
30 |
45 |
75 |
150 |
300 |
|
Load chain size |
mm |
5x15 |
6x18 |
8x24 |
10x30 |
10x30 |
10x30 |
|
Hand chain size |
mm |
5x25 |
5x25 |
5x25 |
5x25 |
5x25 |
5x25 |
|
Extra weight per meter of extra lift |
kg |
1.08 |
1.54 |
2.72 |
4.4 |
8.8 |
17.6 |
|
Min. Headroom Hmin |
mm |
166 |
192 |
217 |
290 |
303 |
385 |
|
I-beam width |
mm |
50-305 |
74-305 |
85-305 |
85-305 |
85-305 |
85-305 |
|

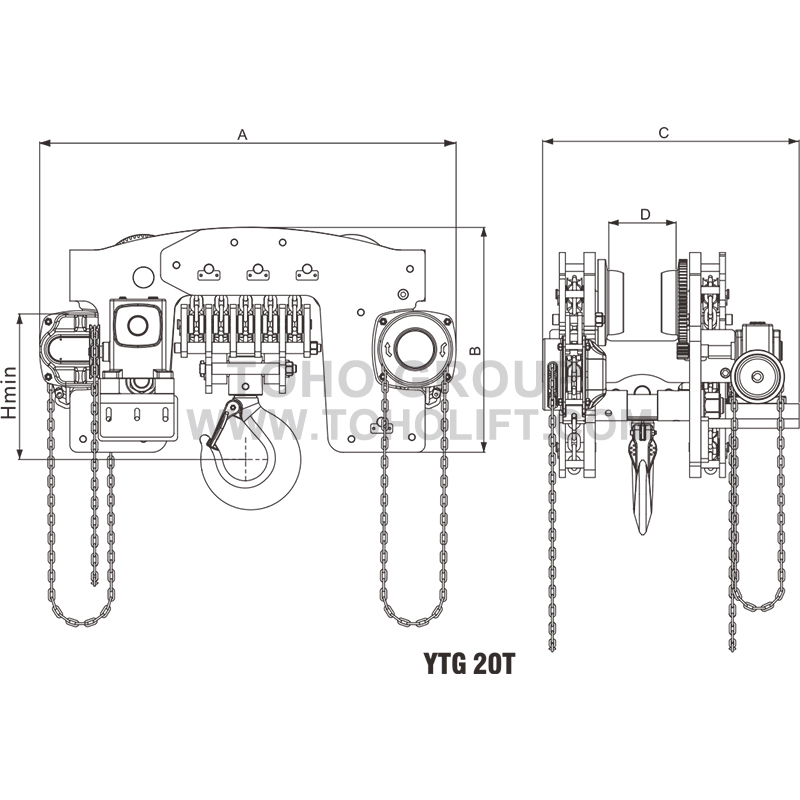

Dimension (mm) |
a |
190 |
215 |
255 |
295 |
346 |
1102 |
|
b |
407 |
471 |
552 |
641 |
693 |
595 |
|
|
c |
295 |
325 |
410 |
490 |
500 |
679 |
|
|
d |
67 |
70 |
91 |
134 |
257 |
178 |
|
|
e |
147 |
170 |
197 |
248 |
300 |
/ |
|
|
F |
88 |
88 |
200 |
200 |
300 |
/ |
|
|
