FEATURES and ADVANTAGES
Alloy steel components with special heat treatment
Automatic Double Pawl Braking System.
Asbestos Free Friction Disc
Industrial Powder Coating meet RoHS requirement
1500 Cycles life test, Meet EN13157, ANSI B30.16,
AS/NZS1418.2, JBT7334 Standards
4 times safety factor
HSZ-622A CHAIN BLOCK
|
Item No. |
|
HSZ-0.5 |
HSZ-1 |
HSZ-1.5 |
HSZ-2 |
HSZ-2 |
HSZ-3 |
HSZ-5 |
HSZ-10 |
HSZ-20 |
HSZ-30 |
|
capacity |
t |
0.5 |
1 |
1.5 |
2 |
2 |
3 |
5 |
10 |
20 |
30 |
|
Standard lift |
m |
2.5 |
2.5 |
2.5 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
|
Running test load |
kN |
7.5 |
15 |
22.5 |
30 |
30 |
45 |
75 |
150 |
300 |
450 |
|
Effort required to lift rated load |
N |
225 |
300 |
310 |
300 |
310 |
350 |
400 |
410 |
410x2 |
410x2 |
|
Strands of load chain |
|
1 |
1 |
1 |
2 |
1 |
2 |
2 |
4 |
8 |
12 |
|
Load chain size |
mm |
5x15 |
6x18 |
7.1x21 |
6x18 |
8x24 |
7.1x21 |
9x27 |
9x27 |
10x30 |
10x30 |
|

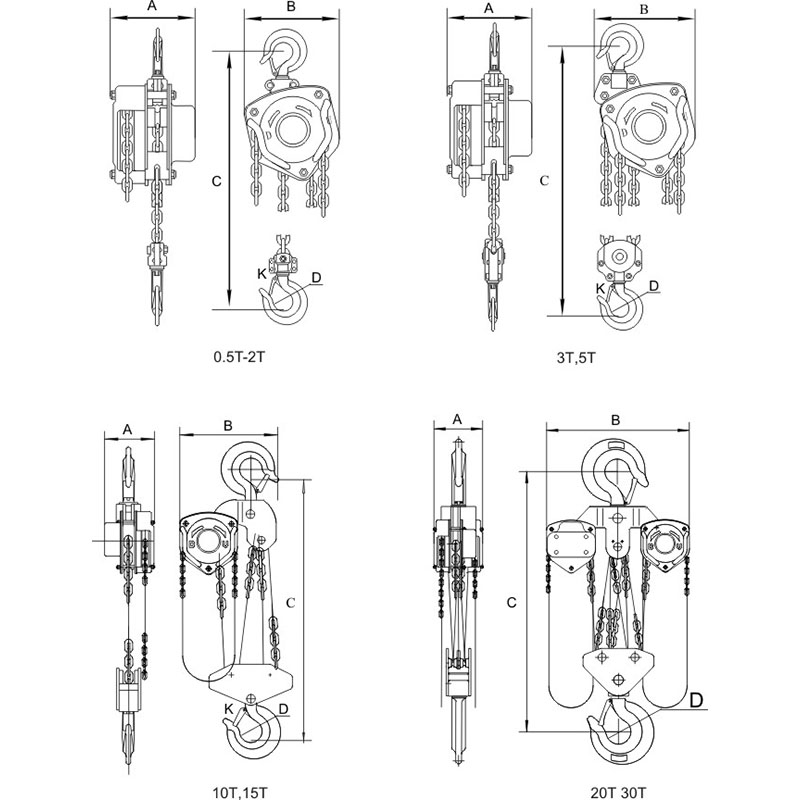

Dimensions (mm) |
A |
131 |
153 |
152 |
153 |
160 |
152 |
183 |
183 |
224 |
274 |
|
B |
136 |
146 |
180 |
160 |
185 |
200 |
253 |
365 |
440 |
649 |
|
|
C |
320 |
350 |
420 |
455 |
450 |
465 |
650 |
750 |
900 |
1040 |
|
|
D |
34.5 |
38 |
46 |
46 |
46 |
52 |
66 |
80 |
106 |
120 |
|
|
K |
22.2 |
23.5 |
32 |
32 |
32 |
35.4 |
46 |
51 |
70 |
80 |
|
|
Net weight |
kg |
8.25 |
10.7 |
13.5 |
14.5 |
15.8 |
20 |
34.4 |
60 |
153 |
215 |
|
Packing measurement |
cm |
24.5x19x18 |
26x19x19 |
30.5x21x19 |
31x20x19 |
30x23.5x23 |
34x24x19 |
49x29x23 |
47x42x22 |
80x70x23 |
80x70x37 |
|
Extra weight per metre of extra lift |
kg |
1.8 |
1.6 |
2 |
3.6 |
3.6 |
3.2 |
4.5 |
8.1 |
19.3 |
28.2 |
OPTIONAL FEATURES WITH EXTRA COST
Independent Overload Protection System
Captured Bearing to reduce the pulling force
Large Throat Opening Hook
Trust Bearing in bottom hook assembly
Casting End Stop
Zinc Plated Load Chain
|
