CHAIN BLOCK
HSZ-B
FEATURES and ADVANTAGES
Automatic Double Pawl Braking System
Asbestos Free Friction Disc
Industrial Powder Coating meet RoHS requirement
|
Model |
|
HSZ-0.5B |
HSZ-1B |
HSZ-1.5B |
HSZ-2B |
HSZ-3B |
HSZ-5B |
HSZ-10B |
HSZ-15B |
HSZ-20B |
|
capacity |
t |
0.5 |
1 |
1.5 |
2 |
3 |
5 |
10 |
15 |
20 |
|
Standard lift |
m |
2.5 |
2.5 |
2.5 |
3 |
3 |
3 |
3 |
3 |
3 |
|
Running test load |
kN |
7.5 |
15 |
22.5 |
30 |
45 |
75 |
125 |
200 |
250 |
|
Effort required to lift rated load |
N |
225 |
309 |
343 |
314 |
343 |
383 |
392 |
392 |
392 |
|
Strands of load chain |
|
1 |
1 |
1 |
2 |
2 |
2 |
4 |
6 |
8 |
|
Load chain size |
mm |
6x18 |
6x18 |
8x24 |
6x18 |
8x24 |
10x30 |
10x30 |
10x30 |
10x30 |
|

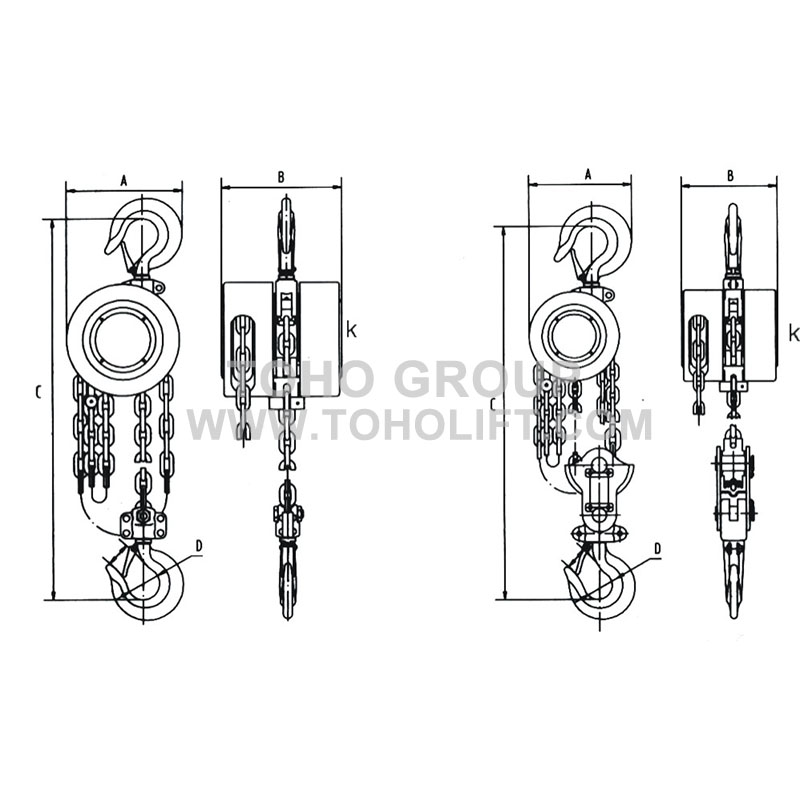

Dimension (mm) |
A |
120 |
142 |
178 |
142 |
178 |
210 |
358 |
400 |
580 |
|
|
B |
108 |
122 |
139 |
122 |
139 |
162 |
162 |
196 |
189 |
|
|
C |
315 |
335 |
435 |
470 |
555 |
720 |
820 |
923 |
1040 |
|
|
D |
35 |
40 |
45 |
50 |
55 |
65 |
85 |
110 |
110 |
|
|
K |
23 |
26 |
29 |
34 |
37 |
41 |
50 |
80 |
80 |
|
Net weight |
kg |
8 |
10 |
16 |
14 |
24 |
36 |
68 |
117 |
155 |
|
Packing measurement |
cm |
28x21x17 |
30x24x18 |
34x29x20 |
33x25x19 |
38x30x20 |
45x35x24 |
62x50x28 |
70x46x75 |
70x46x75 |
|
Extra weight per meter of extra lift |
kg |
1.7 |
1.7 |
2.3 |
2.5 |
3.7 |
5.3 |
9.7 |
14.1 |
19.4 |
|
