CDK VERTICAL LIFTING CLAMPS

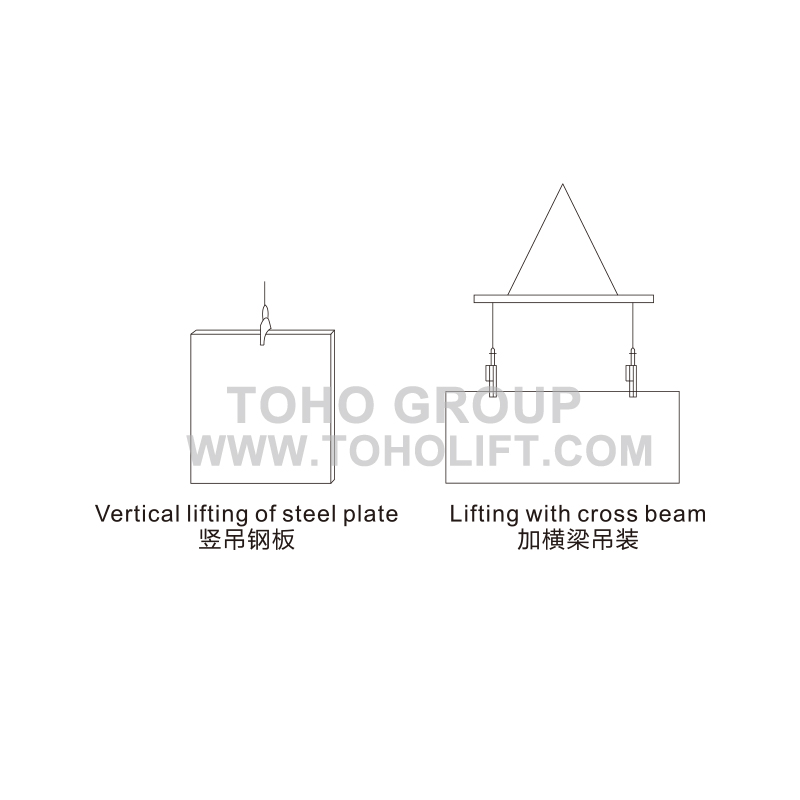

Suitable for lifting and transfer of steel plates and steel structures
with all positions (horizontal, vertical and sidelong)
It is fitted with a locking device for both open and closed positions,
which ensures complete safety
It is fitted with a hoisting ring
Made of high-quality low-carbon alloy steel
It may be used singly or pairs of clamp used together
Do not crash the lifted cargos during the lifting and transfer period
|
Model |
Working load (kg） |
Testing load (kg) |
Opening Size (mm) |
Net weight (kg) |
|
CDK-0.8 |
800 |
1600 |
15-30 |
2 |
|
CDK-1.6 |
1600 |
3200 |
20-40 |
7 |
|
CDK-3.2 |
3200 |
6400 |
25-50 |
15 |
|
CDK-4.5 |
4500 |
9000 |
25-50 |
15 |
|
CDK-5.0 |
5000 |
10000 |
30-60 |
23 |
|
