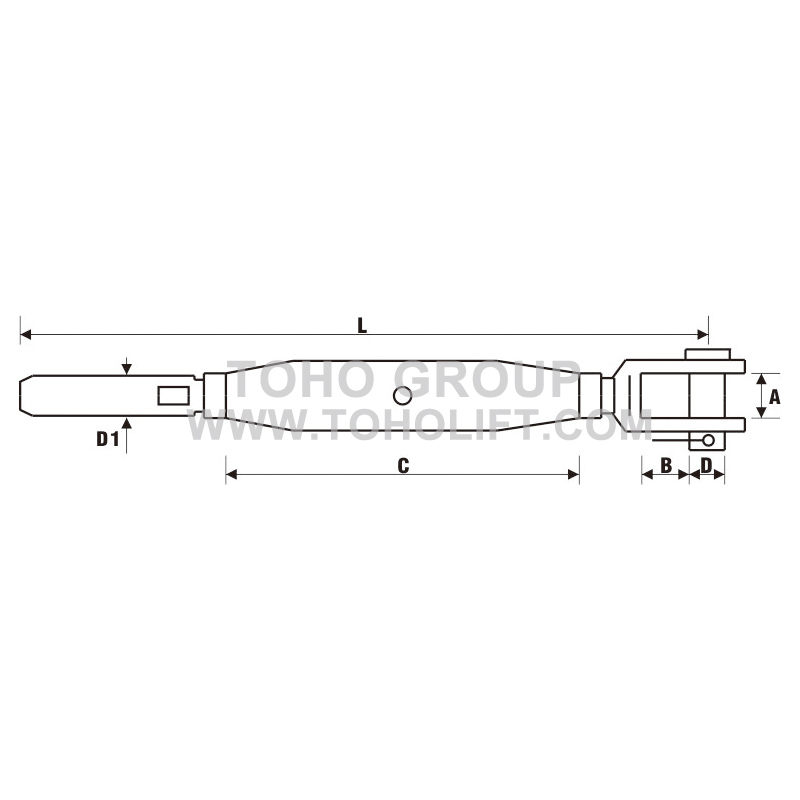

RIGGING SCREW JAW/SWAGE STUD, Stainless Steel MATERIAL: AISI304 AISI316

Size

Wire Size

Dimension(mm)

N.W.

(mm)

(mm)

L(Min-Max)

A

B

C

D

D1

(kg/pc)

M5

2.5

130-190

7.5

10

80

5

5.5

0.08

M6

3

150-220

7.5

10

95

6

6.4

0.08

M8

4

180-225

10

11

105

8

7.5

0.15

M10

5

200-300

12

13

125

9

9

0.23

M12

6

270-425

14

20

150

12

10.7

0.45

M14

7

300-425

14

22

165

12

12.7

0.5

M16

8

350-475

16

26

190

16

16

1.08

M20

10

390-540

20

30

210

17.8

17.8

2.35
