G80 Screw Pin Alloy DEE Shackle (TH-759)
(Body and Bolt) Super alloy steel - Quenched and Tempered..
Sampling breaking test for each batch.
100% magnaflux detection.
Permitted useful temperature range: -40°C - 200°C.
According to standard: RR-C-271D, Type IVA Class 3 Grade B, SS-EN-13889+A1-2008.
Min. Breaking strength is 5 times of the W.L.L. as requirement.
|
Nominal Size |
W.L.L. |
B.L. |

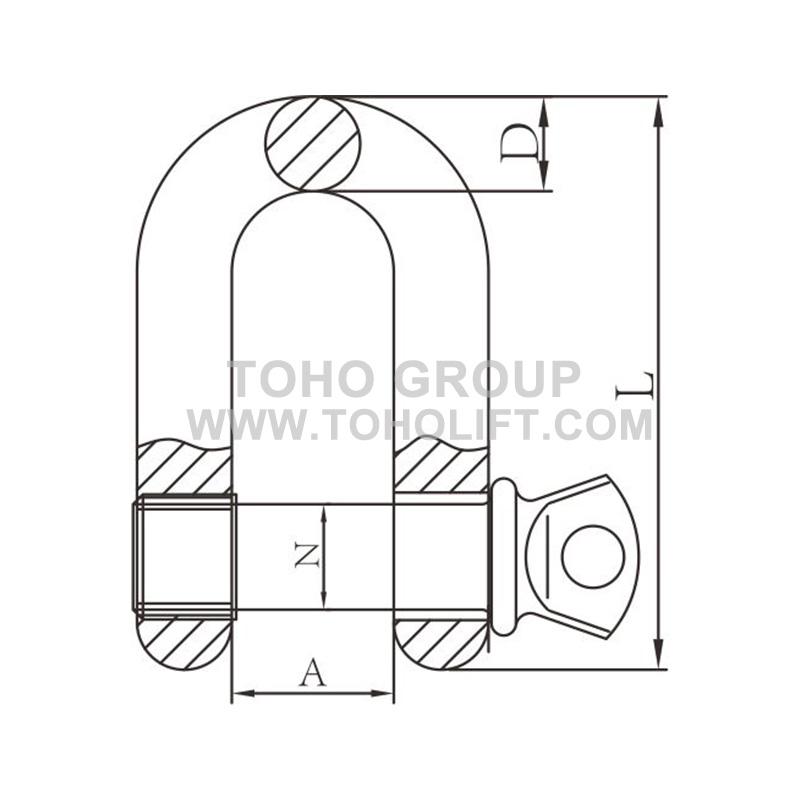

Dimension(mm) |
Weight |
|||
|
(in) |
(t) |
(t) |
A |
D |
L |
N |
(kg/pc) |
|
5/16 |
1.2 |
6 |
13.5 |
8 |
48.5 |
9.5 |
0.077 |
|
3/8 |
1.6 |
8 |
16.8 |
9.7 |
58.4 |
11 |
0.127 |
|
7/16 |
2.5 |
12.5 |
19 |
11.2 |
67.6 |
13 |
0.195 |
|
1/2 |
3.3 |
16.5 |
20.6 |
12.7 |
77 |
16 |
0.268 |
|
5/8 |
5 |
25 |
27 |
17.5 |
97.3 |
19 |
0.568 |
|
3/4 |
7 |
35 |
32 |
20.6 |
116.6 |
22 |
1.19 |
|
7/8 |
9.5 |
47.5 |
36.6 |
24.6 |
135.4 |
25 |
1.44 |
|
1 |
12.5 |
62.5 |
43 |
27 |
152.4 |
28 |
2.16 |
|
1-1/8 |
15 |
75 |
46 |
31.8 |
172.4 |
32 |
3.07 |
|
1-1/4 |
18 |
90 |
51.6 |
35 |
190.5 |
35 |
4.11 |
|
1-3/8 |
21 |
105 |
57 |
35 |
206.8 |
38 |
5.28 |
|
1-1/2 |
30 |
150 |
60.5 |
41 |
230.1 |
42 |
7.24 |
|
1-3/4 |
40 |
200 |
73.2 |
53.8 |
279 |
51 |
12.1 |
|
2 |
55 |
275 |
82.5 |
61 |
324.6 |
57 |
19.2 |
|
