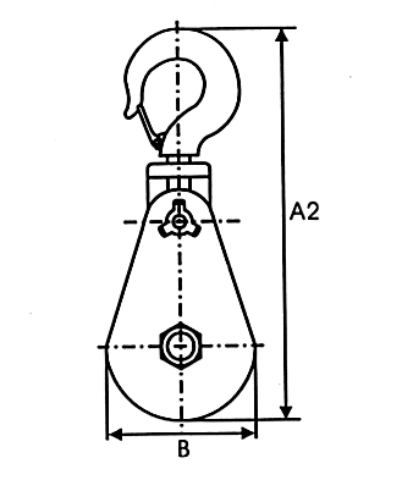

Type |
S.W.L |
Sheave Dia. |
Dimension |
For Wire Dia. |
N.W. |
||
|
Hook |
(t) |
(mm) |
A2(mm) |
B(mm) |
C(mm) |
(mm) |
(kg) |
|
LH3"x1 |
2 |
75 |
292 |
82 |
70 |
7-9 |
4 |
|
LH4-1/2"x1 |
4 |
115 |
358 |
120 |
70 |
10-12 |
6.1 |
|
LH6"x1 |
4 |
150 |
412 |
160 |
70 |
16-18 |
13.8 |
|
LH6"x1 |
8 |
150 |
498 |
160 |
93 |
20-22 |
14.4 |
|
LH8"x1 |
8 |
200 |
549 |
210 |
93 |
20-22 |
16 |
|
LH8"x1 |
15 |
200 |
672 |
230 |
102 |
22-24 |
24 |
|
LH10"x1 |
10 |
250 |
695 |
260 |
115 |
24-26 |
37.5 |
|
LH10"x1 |
12 |
250 |
701 |
260 |
115 |
24-26 |
42 |
|
LH12"x1 |
12 |
300 |
797 |
310 |
133 |
24-26 |
56 |
|
LH12"x1 |
15 |
300 |
797 |
310 |
133 |
26-28 |
65 |
|
LH14"x1 |
22 |
355 |
960 |
365 |
140 |
28-32 |
90 |
|
LH16"x1 |
22 |
400 |
1027 |
415 |
140 |
28-32 |
108 |
|
LH16"x1 |
30 |
400 |
1085 |
415 |
155 |
32-35 |
135 |
|
LH20"x1 |
30 |
500 |
1177 |
514 |
162 |
32-35 |
210 |
|
LH24"x1 |
50 |
600 |
1445 |
625 |
240 |
46-50 |
408 |
|
