Standard: GB20652
It can be used as one leg choker chain sling when the hook is inside the link, but the working load will be reduced 20%.
Safety factor: 4:1
|
Chain Size |
W.L.L |
Master Link |
Sling Weight |
Chain Weight |
|
(mm) |
(t) |

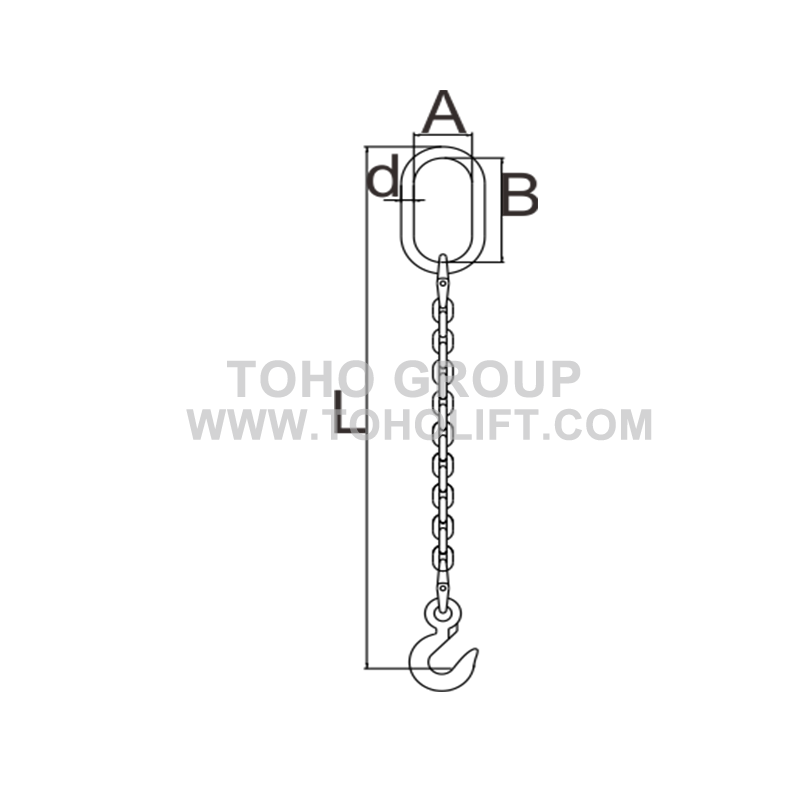

AXBXd(mm) |
(Kg/m) |
(Kg/m) |
|
6 |
1 |
65x130x12 |
1.88 |
0.79 |
|
8 |
1.5 |
65x130x16 |
3.07 |
1.38 |
|
10 |
2.5 |
80x150x20 |
5.96 |
2.2 |
|
12 |
3.5 |
90x160x24 |
9.03 |
3.1 |
|
14 |
5 |
90x160x24 |
10.09 |
4.13 |
|
16 |
6 |
100x190x28 |
14.25 |
5.63 |
|
18 |
8 |
100x190x28 |
15.31 |
6.85 |
|
20 |
10 |
110x200x32 |
18.96 |
8.6 |
|
22 |
12 |
120x230x34 |
35.51 |
10.2 |
|
24 |
14 |
135x250x38 |
39.25 |
12.78 |
|
26 |
17 |
140x270x42 |
65.28 |
14.87 |
|
30 |
22 |
160x310x46 |
69.65 |
19.6 |
|
34 |
36 |
180x330x52 |
78.73 |
22.7 |
|
