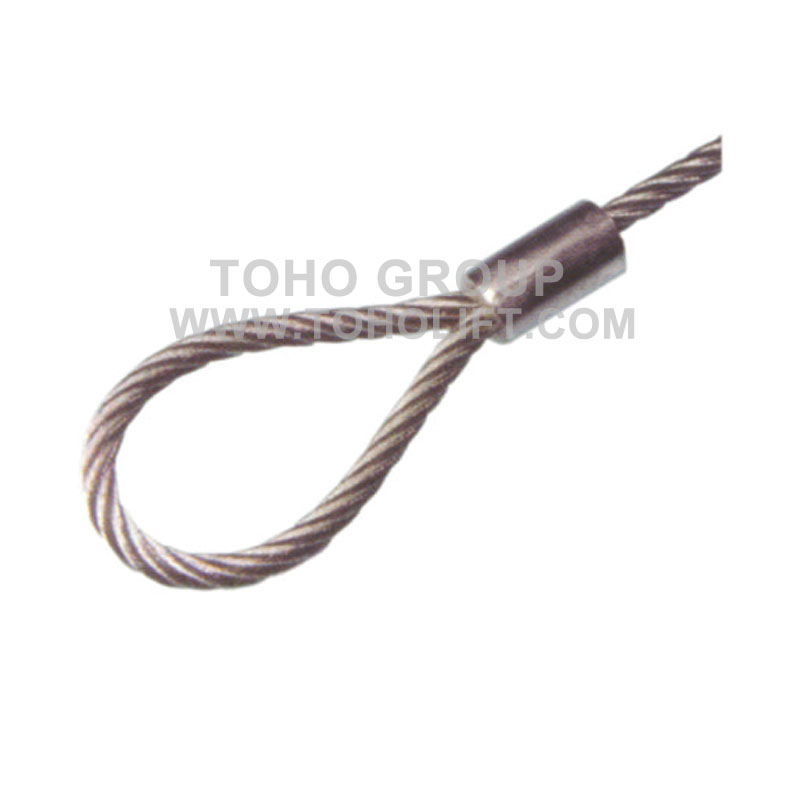

PRESS STEEL WIRE ROPE SLINGS
The specification of the wire rope used by the following working load in the table Dia 6mm-60mm use the construction of 6X37(b)-1670; Dia 62mm-120mm use the construction of 8X61(b)-1670; Dia 122mm-190mm use the construction of 8X91(b)-1670.
Different construction of the rope means different working load, we can calculate the working load with the steel wire rope construction that the customer required.
The sling's breaking load is 5 times of its working load.

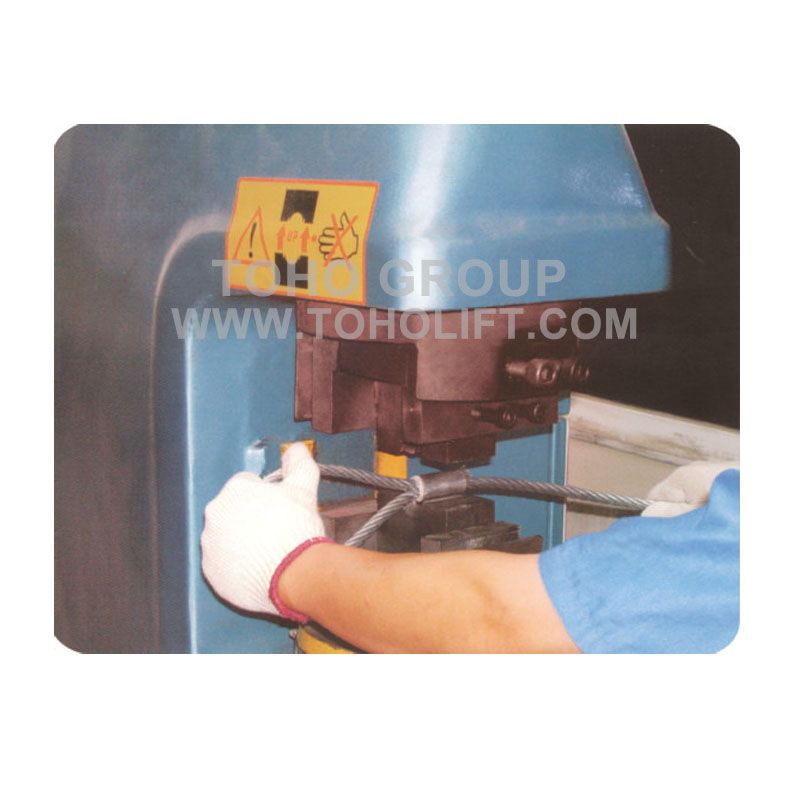

The pressed type for the rope with dia 90mm is pressed two aluminum ferrule on each end of the sling
|
Dia. of Rope (mm) |
W.L.L (kN) |
Appr. Eye Length A (mm) |
|
Dia. of Rope (mm) |
W.L.L (kN) |
Appr. Eye Length A (mm) |
||
|
FC |
IWRC |
FC |
IWRC |
|||||
|
6 |
3.2 |
3.4 |
180 |
|
94 |
667 |
789 |
1880 |
|
7 |
4.3 |
4.7 |
190 |
|
96 |
695 |
823 |
1920 |
|
8 |
5.7 |
6.1 |
210 |
|
98 |
725 |
857 |
1960 |
|
9 |
7.2 |
7.8 |
230 |
|
100 |
755 |
893 |
2000 |
|
10 |
8.9 |
9.6 |
230 |
|
102 |
785 |
929 |
2040 |
|
11 |
11 |
12 |
250 |
|
104 |
816 |
966 |
2080 |
|
12 |
13 |
14 |
260 |
|
106 |
848 |
1003 |
2120 |
|
13 |
15 |
16 |
260 |
|
108 |
880 |
1041 |
2160 |
|
14 |
17 |
19 |
280 |
|
110 |
913 |
1080 |
2200 |
|
16 |
23 |
24 |
320 |
|
112 |
946 |
1120 |
2240 |
|
18 |
29 |
31 |
360 |
|
114 |
981 |
1160 |
2280 |
|
20 |
35 |
38 |
400 |
|
116 |
1015 |
1201 |
2320 |
|
22 |
43 |
46 |
440 |
|
118 |
1051 |
1243 |
2360 |
|
24 |
51 |
55 |
480 |
|
120 |
1086 |
1286 |
2400 |
|
26 |
60 |
65 |
520 |
|
122 |
1207 |
1503 |
2440 |
|
28 |
69 |
75 |
560 |
|
124 |
1247 |
1553 |
2480 |
|
30 |
80 |
86 |
600 |
|
126 |
1288 |
1603 |
2520 |
|
32 |
91 |
98 |
640 |
|
128 |
1330 |
1654 |
2560 |
|
34 |
102 |
110 |
680 |
|
130 |
1371 |
1706 |
2600 |
|
36 |
115 |
124 |
720 |
|
132 |
1414 |
1760 |
2640 |
|
38 |
128 |
138 |
760 |
|
134 |
1458 |
1818 |
2680 |
|
40 |
142 |
153 |
800 |
|
136 |
1501 |
1872 |
2720 |
|
42 |
157 |
169 |
840 |
|
138 |
1546 |
1926 |
2760 |
|
44 |
172 |
185 |
880 |
|
140 |
1591 |
1980 |
2800 |
|
46 |
187 |
203 |
920 |
|
142 |
1636 |
2034 |
2840 |
|
48 |
203 |
220 |
960 |
|
144 |
1683 |
2088 |
2880 |
|
50 |
221 |
240 |
1000 |
|
146 |
1729 |
2160 |
2920 |
|
52 |
239 |
259 |
1040 |
|
148 |
1778 |
2214 |
2960 |
|
54 |
258 |
279 |
1080 |
|
150 |
1818 |
2268 |
3000 |
|
56 |
277 |
301 |
1120 |
|
152 |
1872 |
2340 |
3040 |
|
58 |
298 |
322 |
1160 |
|
154 |
1926 |
2394 |
3080 |
|
60 |
319 |
345 |
1200 |
|
156 |
1980 |
2466 |
3120 |
|
62 |
322 |
350 |
1240 |
|
158 |
2034 |
2520 |
3160 |
|
64 |
325 |
365 |
1280 |
|
160 |
2070 |
2592 |
3200 |
|
66 |
329 |
389 |
1320 |
|
162 |
2124 |
2646 |
3240 |
|
68 |
349 |
413 |
1360 |
|
164 |
2178 |
2718 |
3280 |
|
70 |
370 |
437 |
1400 |
|
166 |
2232 |
2790 |
3320 |
|
72 |
391 |
463 |
1440 |
|
168 |
2286 |
2844 |
3360 |
|
74 |
413 |
489 |
1480 |
|
170 |
2340 |
2916 |
3400 |
|
76 |
436 |
516 |
1520 |
|
172 |
2394 |
2988 |
3440 |
|
78 |
459 |
543 |
1560 |
|
174 |
2466 |
3060 |
3480 |
|
80 |
483 |
571 |
1600 |
|
176 |
2520 |
3132 |
3520 |
|
82 |
507 |
600 |
1640 |
|
178 |
2574 |
3204 |
3560 |
|
84 |
532 |
630 |
1680 |
|
180 |
2628 |
3276 |
3600 |
|
86 |
558 |
660 |
1720 |
|
182 |
2682 |
3348 |
3640 |
|
88 |
584 |
691 |
1760 |
|
184 |
2754 |
3420 |
3680 |
|
90 |
611 |
723 |
1800 |
|
186 |
2808 |
3492 |
3720 |
|
92 |
639 |
756 |
1840 |
|
188 |
2862 |
3564 |
3760 |
|
|
|
|
|
|
190 |
2934 |
3654 |
3800 |
