型号 |
工作载荷 |
滑轮直径 |

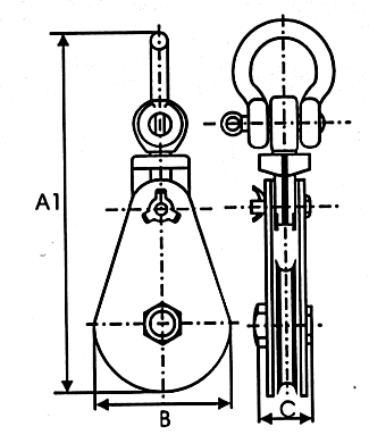

主要尺寸 |
钢丝绳直径 |
净重 |
||||
|
卸扣型 |
(t) |
(mm) |
A2(mm) |
B(mm) |
C(mm) |
(mm) |
(kg) |
||
|
LS3"x1 |
2 |
75 |
286 |
82 |
70 |
7-9 |
4 |
||
|
LS4-1/2"x1 |
4 |
115 |
345 |
120 |
70 |
10-12 |
6.1 |
||
|
LS6"x1 |
4 |
150 |
399 |
160 |
70 |
16-18 |
13.8 |
||
|
LS6"x1 |
8 |
150 |
475 |
160 |
93 |
20-22 |
14.4 |
||
|
LS8"x1 |
8 |
200 |
528 |
210 |
93 |
20-22 |
16 |
||
|
LS8"x1 |
15 |
200 |
663 |
230 |
102 |
22-24 |
24 |
||
|
LS10"x1 |
10 |
250 |
679 |
260 |
115 |
24-26 |
37.5 |
||
|
LS10"x1 |
12 |
250 |
679 |
260 |
115 |
24-26 |
42 |
||
|
LS12"x1 |
12 |
300 |
767 |
310 |
133 |
24-26 |
56 |
||
|
LS12"x1 |
15 |
300 |
884 |
310 |
133 |
26-28 |
65 |
||
|
LS14"x1 |
22 |
355 |
952 |
365 |
140 |
28-32 |
90 |
||
|
LS16"x1 |
22 |
400 |
1019 |
415 |
140 |
28-32 |
108 |
||
|
LS16"x1 |
30 |
400 |
1126 |
415 |
155 |
32-35 |
135 |
||
|
LS20"x1 |
30 |
500 |
1256 |
514 |
162 |
32-35 |
208 |
||
|
LS24"x1 |
50 |
600 |
1525 |
625 |
240 |
46-50 |
418 |
||
|
