G80美标焊接强力环

规格

链条规格

链条 (4:1)

钢丝绳(5:1)

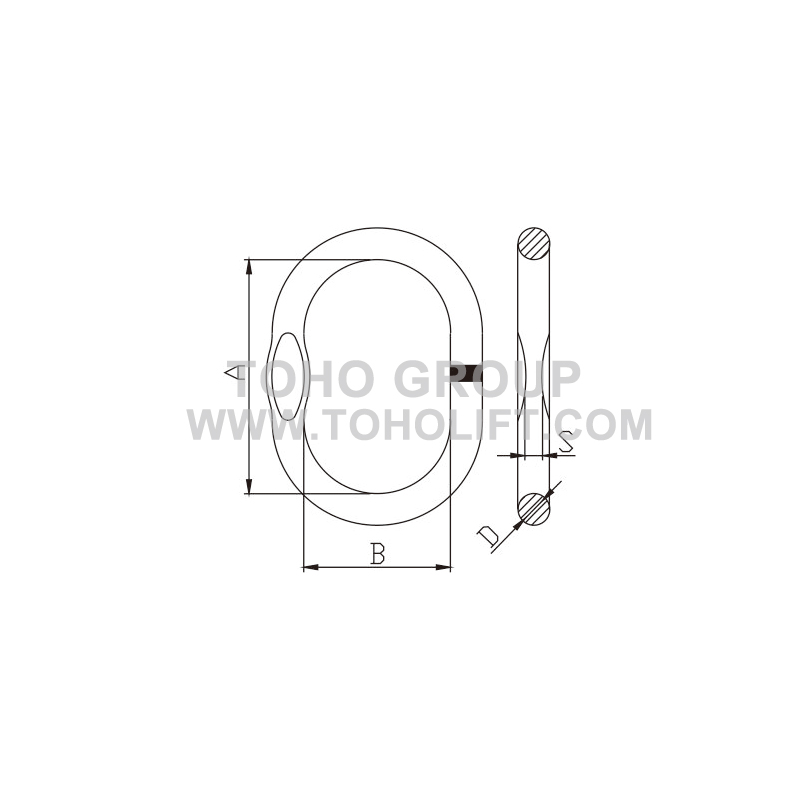

主要尺寸 (mm)

净重

(千克/件)

单腿工作载荷(吨)

双腿工作载荷(吨)

工作载荷(吨)

A

B

D

S

7/16"

1/4"

1.12

1.6

1.6

100

60

12

6

0.27

9/32"

1.5

-

1/2"

9/32"

1.5

2.12

2.5

100

60

14

7.6

0.38

5/16"

2

-

11/16"

5/16"

2

2.8

4

160

90

18

8.4

0.85

3/8"

3.15

-

3/4"

3/8"

3.15

4.25

6.5

160

90

20

10.4

1.2

1/2

5.3

-

7/8"

1/2"

5.3

7.5

8

180

100

22

13.5

1.63

5/8"

8

-

1"

5/8"

8

11.2

11.5

180

100

25

16.5

2.13

3/4"

11.2

-

1-1/8"

3/4"

12.5

-

11.8

270

140

28

19

3.81

1-1/4"

3/4"

11.2

16

16

270

140

32

19

5.05

7/8"

15

-

1-3/8"

7/8"

15

21.2

24

285

155

36

20

6.83

1"

21.2

-

1-1/2"

1-1/8"

25

-

25

300

160

40

26

8.9

1-3/4"

1"

21.2

30

31.5

340

180

45

26

12.8

1-1/4"

31.5

-

2"

1-1/4"

31.5

45

45

390

215

51

32

17.3
